HWA Combipress 60 - Kit 02
HWA Combipress 60 - Kit 02
Product number:
19095
HWA Combipress 60 - Kit 02
Product number:
19095
- Complete water supply package for rainwater harvesting systems consisting of: Submersible pump Rainsub 60, automatic switch Kit 02 Pro and floating intake

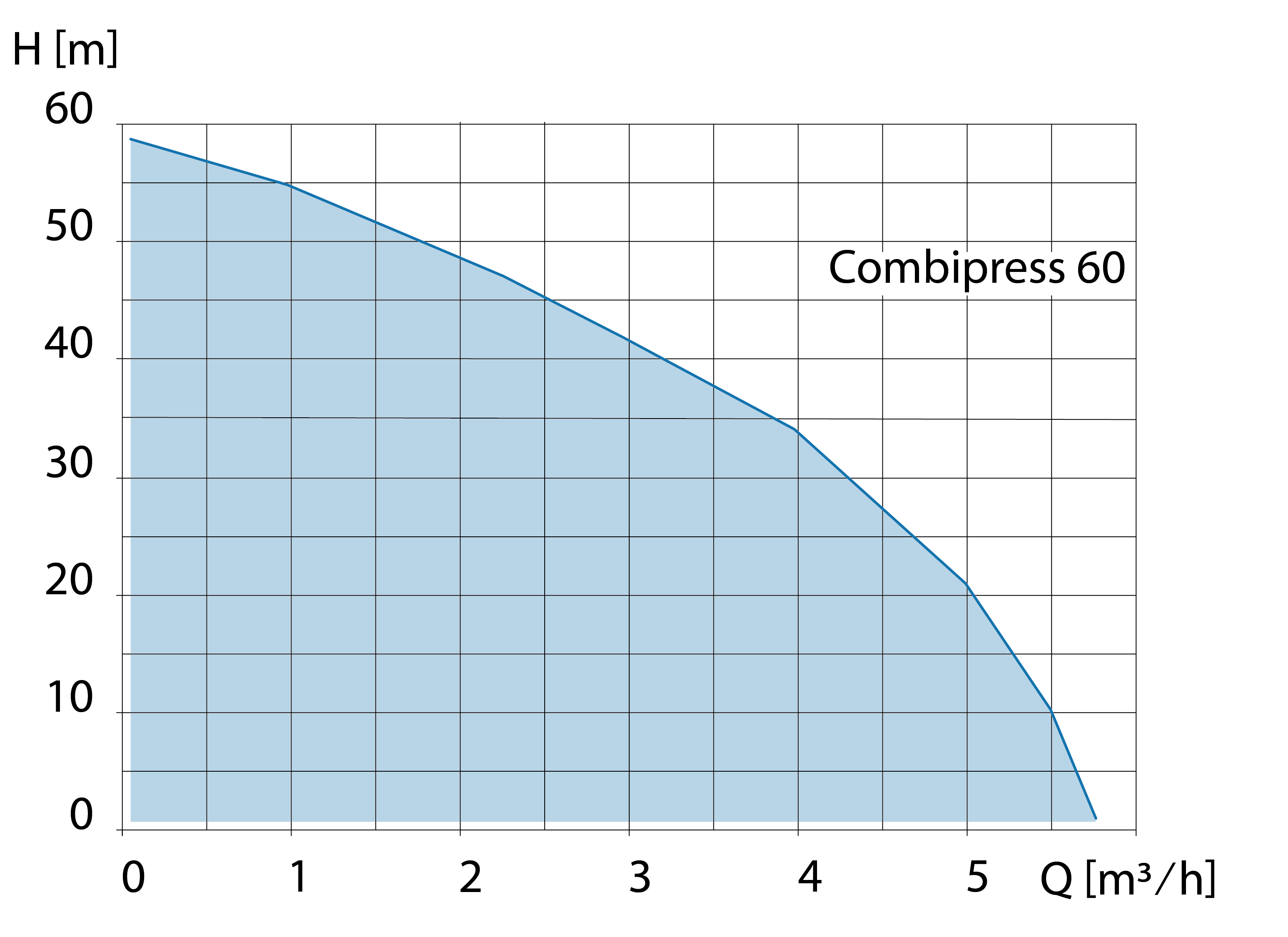

- Max. flow rate: 5,7 m³/h
- Max. head: 57,0 m
- Input power P1: 1.250 W
- Output power P2: 750 W
- Pressure outlet: 1" Internal thread
Model
- stainless steel baseplate for vertical mounting
- automatic control KIT 02 including wall bracket When one of the consumers gets opened, the pump is automatically switched on. When all the consumers are closed, the pump is automatically switched off.
- pre-assembled floating tap with suction basket
- pump case, impellers, suction connectors made of stainless steel 1.4301
- shaft made of stainless steel 1.4021
- guide wheels made of special Noryl®
- double end face mechanical seal consisting of carbon + ceramic
- case, Kit-02 PRO, PPO recyclable
- spiral suction hose made of bacteriostatic thermoplastic
- suction gasket and hose clamps made of non-corrosive stainless steel
Application
- complete water supply package for rainwater utilisation installations
- submersible motor pump Rainsub 60 for fully or semi submerged permanent operation
- discharge head: max. 20 m
- for clear water without aggressive and abrasive components
| Application: | Supply |
|---|---|
| Features: | with electronic pressure regulator |
| Frequency: | 50 |
| Head up to [m]: | 57.0 |
| Installation location: | outside buildings |
| Max. temperature [°C]: | 35 |
| Nominal current [A]: | 5.7, 6.0 |
| Packing (WxHxL): | 310 x 800 x 440 |
| Power P1 [W]: | 1250 |
| Pumped medium: | clear water, rainwater |
| Speed [U/min]: | 2850 |
| Voltage [V]: | 230 |
| C [µF]: | 25 |
