Domestic waterworks with digitally adjustable pressure switch
Domestic waterworks with digitally adjustable pressure switch
Product number:
20261
Domestic waterworks with digitally adjustable pressure switch
Product number:
20261
- Garden 1000 self-priming, maintenance-free, multistage centrifugal pump
- 20 l steel diaphragm pressure tank, painted
- Digital pressure switch for automatic operation
Model
- Injector pump
- smoothly running
- pre-wired with plug including mains cable, 2 m long, H 07 RNF and plug

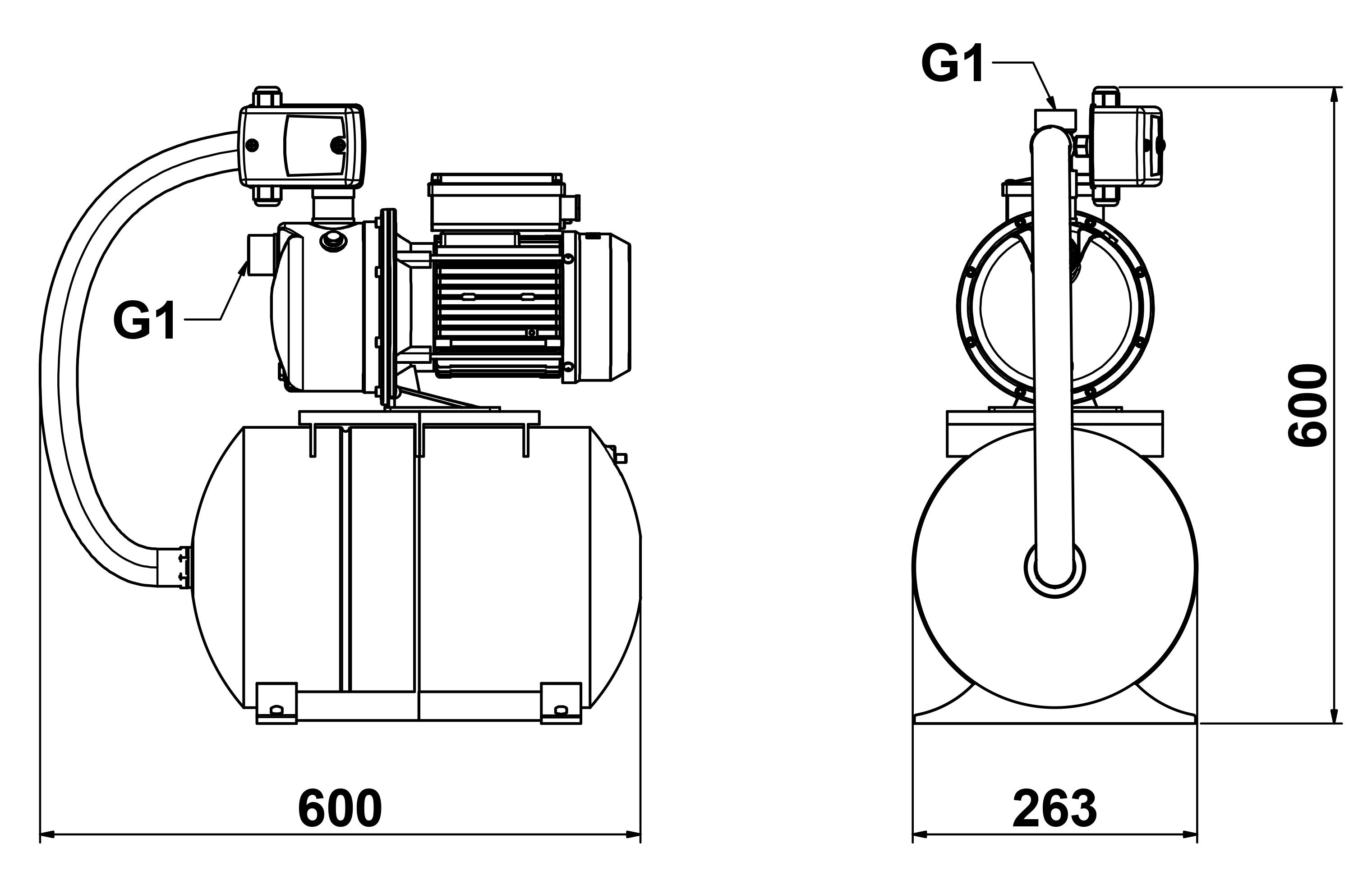

- pressure- and suction connector 1” internal thread
- due to the digital pressure switch, the pump automatically switches on and off
- digital pressure display
- easy to operate
- guide wheels made of special Noryl®
- motor case made of light metal L-2521
- 20 l membrane pressure tank
Application
- rainwater utilization plants
- irrigation
- pressure boosting
- supply of clear water without aggressive and abrasive components
| Application: | Supply |
|---|---|
| Features: | Druckschalter (pneum. hydr.) |
| Frequency: | 50 |

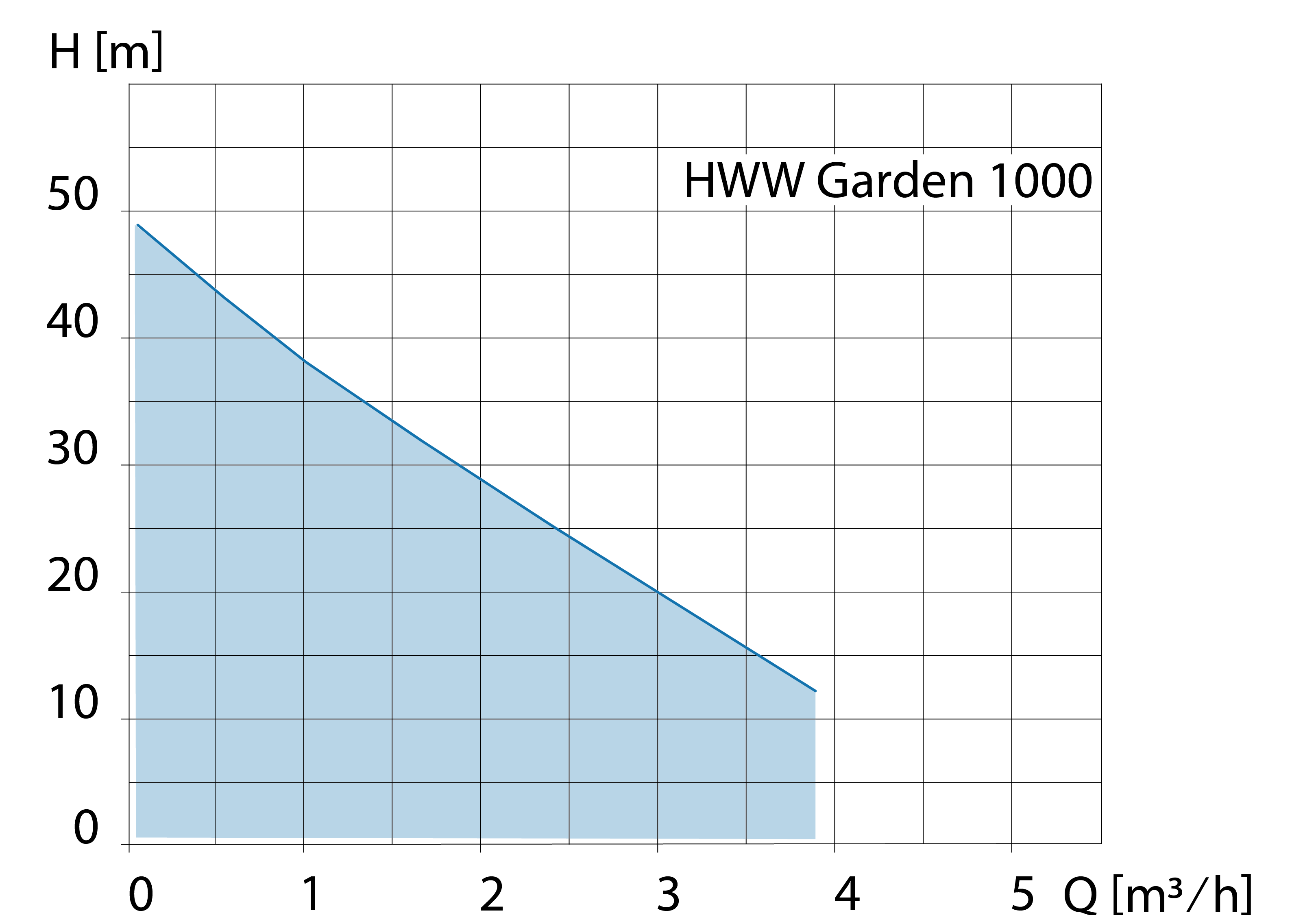

| Head up to [m]: | 50.0 |
| Installation location: | inside buildings |
| Max. flow rate [m³/h]: | 3.6 |
| Max. temperature [°C]: | 40 |
| Nominal current [A]: | 5.2 |
| Packing (WxHxL): | 310 x 590 x 620 |
| Power P1 [W]: | 1000 |
| Pumped medium: | clear water, rainwater |
| Speed [U/min]: | 2800 |
| Voltage [V]: | 230 |
| C [µF]: | 20 |
Compact booster system – an alternative to conventional home waterworks
