Electronic level control 1000
Electronic level control 1000
Product number:
24388
Electronic level control 1000
Product number:
24388
Model:
- For automatic level monitoring of conductive liquids
- When the defined level is reached, a relay switches connected devices on or off
- Switching point freely selectable at any water level
- No moving float switches – trouble-free operation
- Automatic switch-off delay of approx. 20 seconds
- Switching output configurable as normally open or normally closed
- Compact design for wall mounting in indoor areas
- Maintenance-free and operation-free usage Trigger sensitivity adjustable: < 50 kOhm
Application:
- Protection against water ingress in basements and living areas
- Level monitoring in wells, tanks, and cisterns
- Monitoring in case of backflow due to clogged drains
- Use in case of leakage risk caused by pipe bursts
- Suitable for reservoirs made of concrete, plastic, or metal
- Applications in heating, cooling, rainwater, freshwater, or wastewater systems

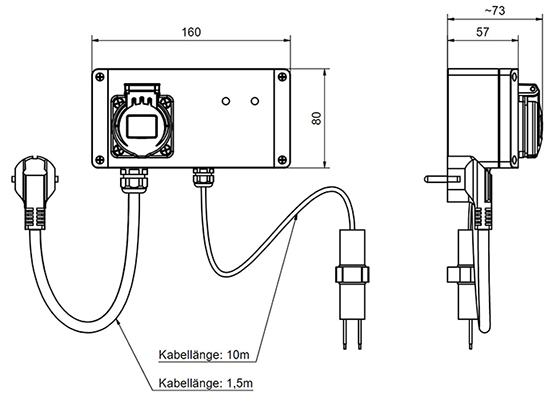

Scope of delivery:
- Control unit ENS 1000
- 1 x Water sensor with 10 m cable length
- Mounting material (screws and wall plugs)
- Detailed installation and operating manual
| Frequency: | 50 |
|---|---|
| Installation location: | inside buildings |
| Max. temperature [°C]: | 40 |
| Voltage [V]: | 230 |
