TM 31
TM 31
Product number:
11962
TM 31
Product number:
11962
- 4" deep well pump with oil-filled asynchronous motor in stainless steel housing with thermal contact.

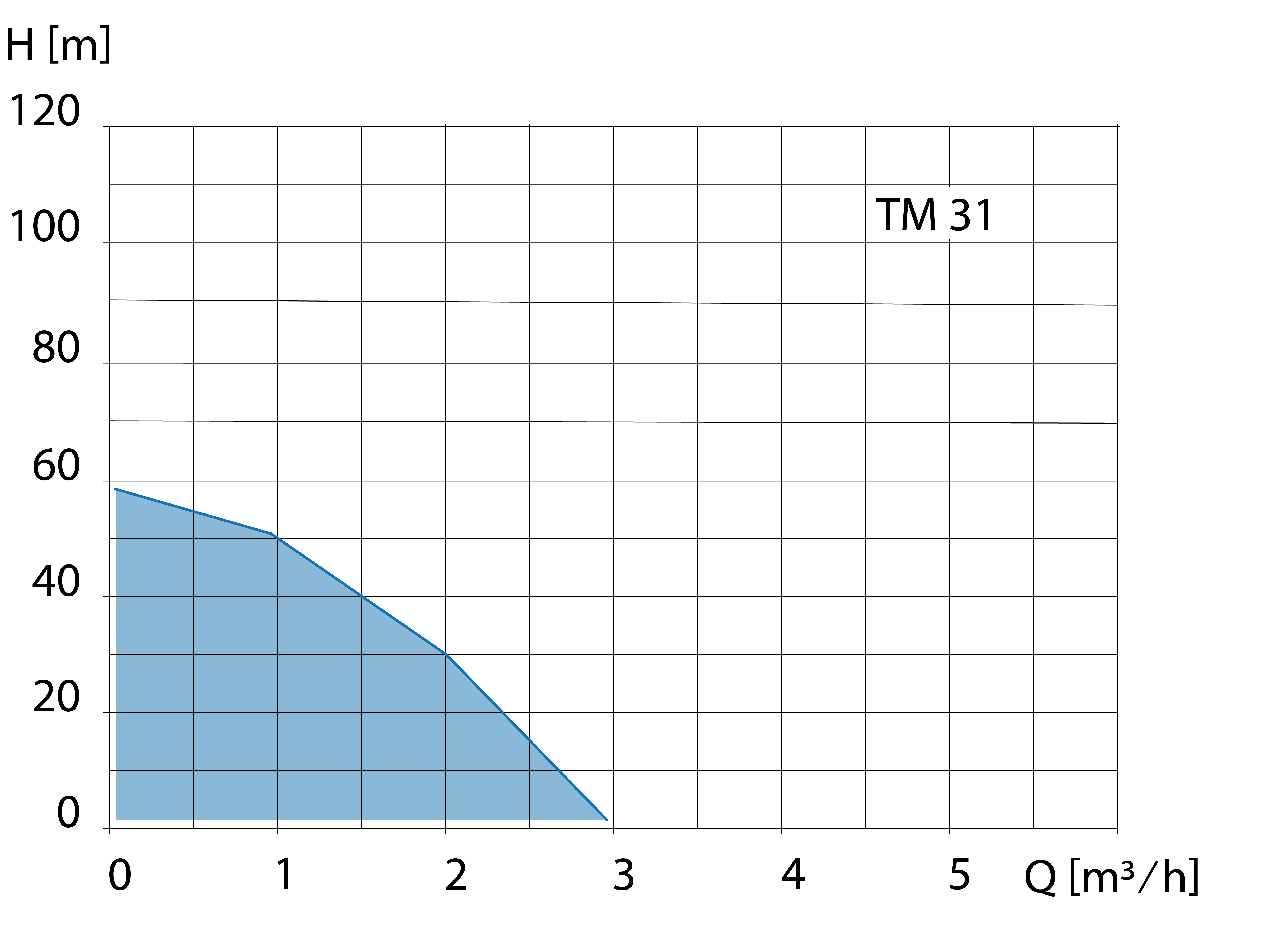

- Max. flow rate: 3,1 m³/h
- Max. head: 57,0 m
- Input power: 860 W
- Output power P2: 460 W

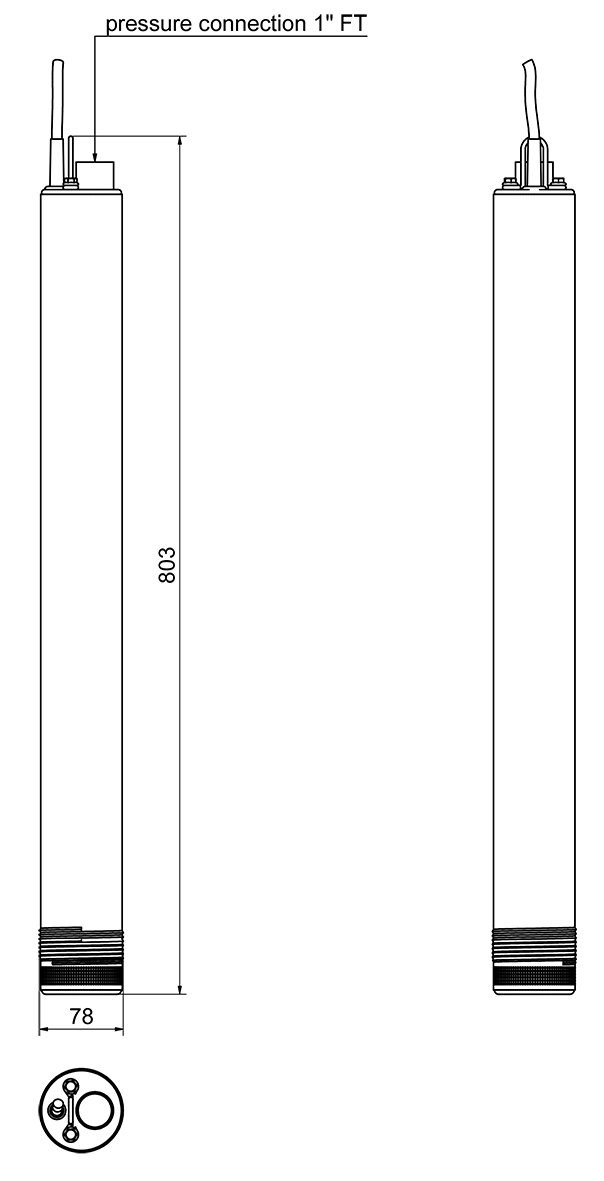

- Pressure outlet: 1" Internal thread
Model
Scope of delivery
- oil-filled asynchronous motor within stainless steel housing with thermal contact
- jacket cooling for continuous duty horizontal / emerged
- sealed with high-grade mechanical seal
- brass bearing shield
- stainless steel pump housing and motor shaft
- modern, powerful pump hydraulics with impellers and guide wheels made of wear-resistant plastic
Applicatioan
- water pumping from deep wells and rainwater cisterns
- domestic water supply, garden irrigation
- pump with 20 m power cable and plug with integrated capacitor, power switch and motor protection
- Attention! Non-return valve is not included in scope of delivery
| Application: | Supply |
|---|---|
| Frequency: | 50 |
| Head up to [m]: | 57.0 |
| Installation location: | outside buildings |
| Max. flow rate [m³/h]: | 3.1 |
| Max. temperature [°C]: | 35 |
| Nominal current [A]: | 3.8 |
| Packing (WxHxL): | 250 x 95 x 805 |
| Power P1 [W]: | 860 |
| Power P2 [W]: | 460 |
| Pumped medium: | clear water, rainwater |
| Speed [U/min]: | 2800 |
| Voltage [V]: | 230 |
| C [µF]: | 16 |
