TM 12-1
Product number:
13913
- 4" deep well pump with oil-filled asynchronous motor in stainless steel housing with thermal contact.

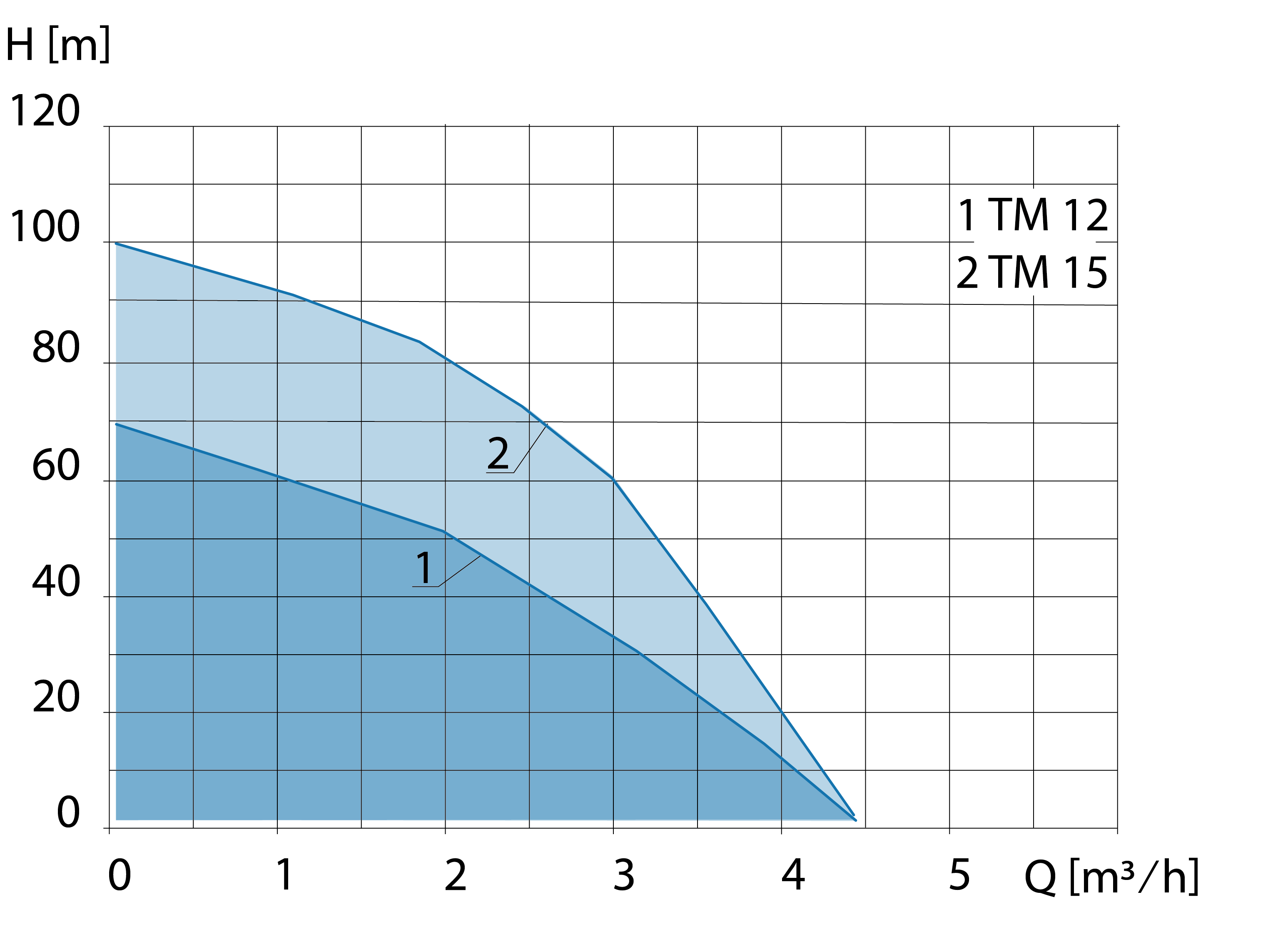

- Max. flow rate: 4,5 m³/h
- Max. head: 68,0 m
- Input power P1: 1.200 W
- Output power P2: 800 W

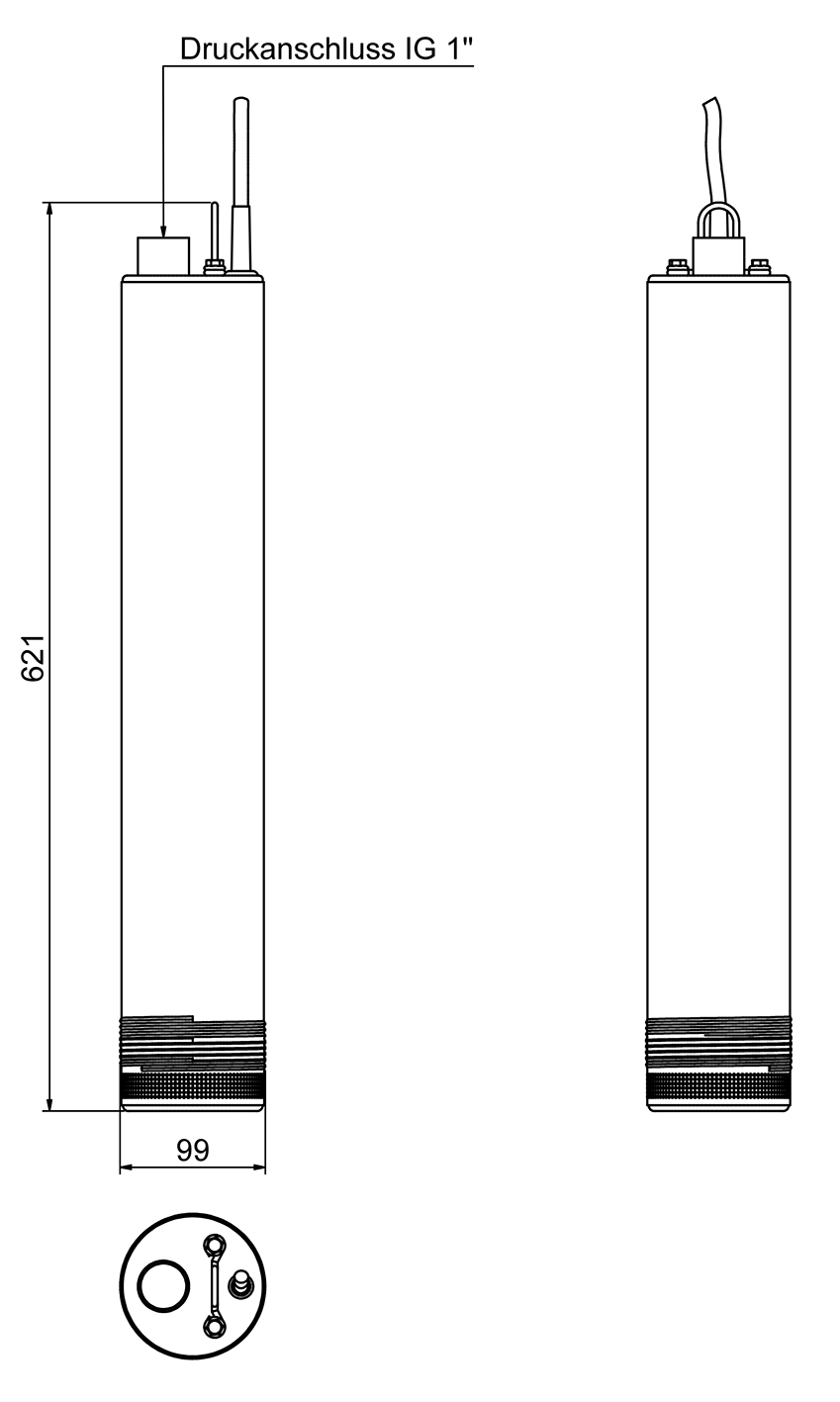

- Pressure outlet: 1" Internal thread
Model
- oil-filled asynchronous motor within stainless steel housing with thermal contact
- jacket cooling for continuous duty horizontal / emerged
- sealed with high-grade mechanical seal
- brass bearing shield
- stainless steel pump housing and motor shaft
- modern, powerful pump hydraulics with impellers and guide wheels made of wear-resistant plastic
Applicatioan
- water pumping from deep wells and rainwater cisterns domestic water supply, garden irrigation
Scope of delivery
- pump with 20 m power cable and plug with integrated capacitor, power switch and motor protection
- Attention! Non-return valve is not included in scope of delivery
| Application: | Supply |
|---|---|
| Frequency: | 50 |
| Head up to [m]: | 4.5, 68.0 |
| Installation location: | outside buildings |
| Max. temperature [°C]: | 35 |
| Nominal current [A]: | 5.2 |
| Packing (WxHxL): | 285 x 125 x 765 |
| Power P1 [W]: | 800, 1200 |
| Pumped medium: | clear water, rainwater |
| Speed [U/min]: | 2800 |
| Voltage [V]: | 230 |
| C [µF]: | 20 |
