VersaCut®
VersaCut®
Product number:
24005
VersaCut®
Product number:
24005
- Small Lifting Station for Sewage with High-Performance Cutting System
- Connection for floor-standing or wall-mounted WC

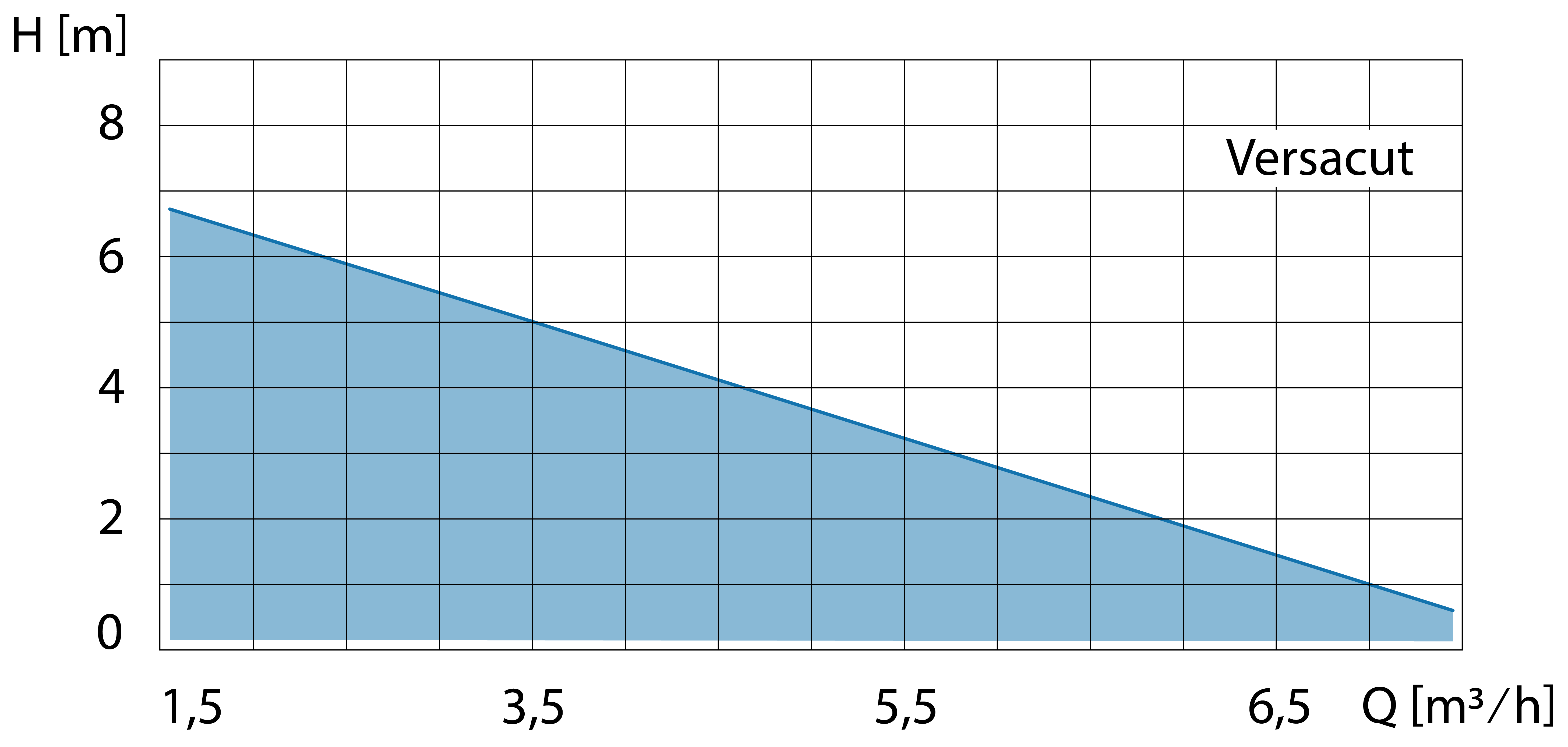

- Maximum flow rate Qmax: 7.0 m³/h
- Maximum head Hmax: 7.0 m
- Motor rating P1: 500 W
- Motor output P2: 370 W
- Pressure outlet: 1 1/4" female thread
Specification:
- 2-in-1 small lifting station according to DIN EN 12050-3: connection of floor-standing or wall-mounted WC possible
- High-performance cutting system made of corrosion-resistant special steel 1.4112 with particularly high hardness, wear resistance and cutting efficiency; reliably shreds wet wipes and sanitary articles

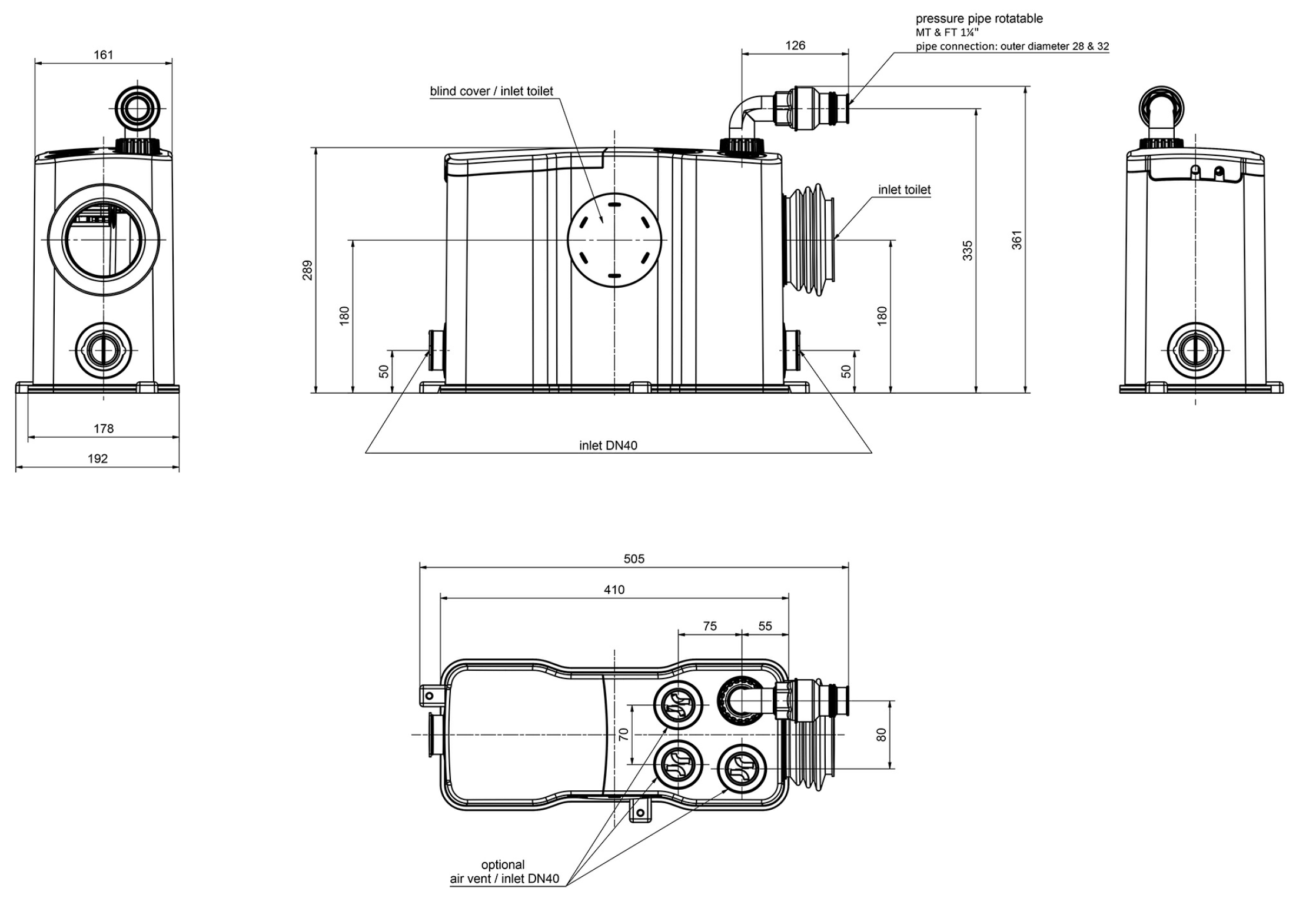

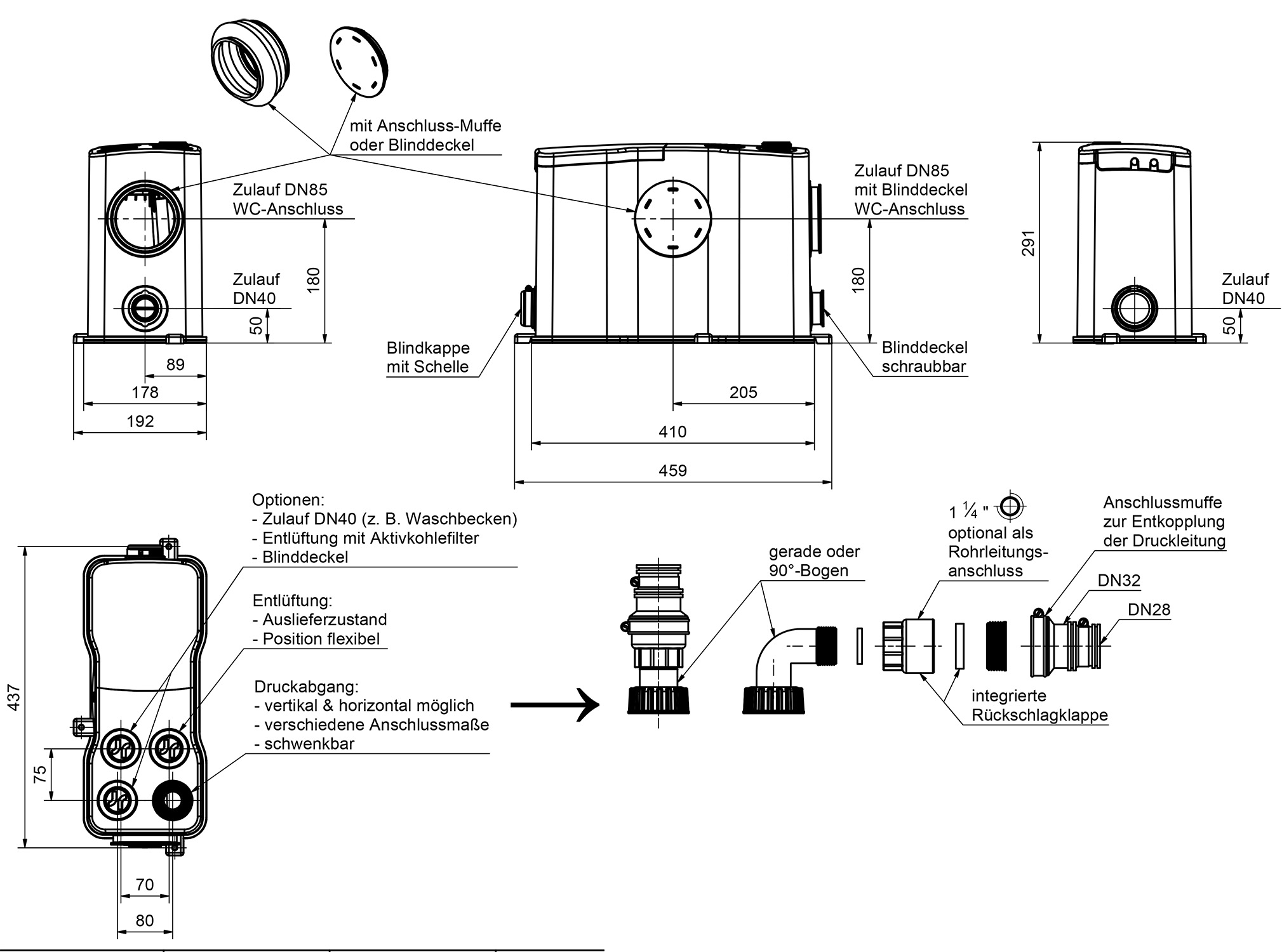

- Multiple inlet options: front inlet for connection of a EURO toilet, 2 side inlets with non-return valve, plus 2 additional inlets on the tank cover (optional in 3 selectable positions)
- Low inlet height: only 50 mm (side), e.g. for connecting a shower
- Collection tank made of ABS, approx. 11 l capacity
- Double sealing with mechanical seal and shaft seal ring
- Robust submersible pump, pressure outlet 1 1/4" female thread with integrated check valve, outlet selectable horizontally or vertically (90° bend)
- Tank ventilation via activated carbon filter or alternatively via vent pipe DN 40 Freely selectable position of the tank ventilation on the cover
- Volt-free contact already prepared (separate cable, no wiring required)
- Integrated alarm signal in case of malfunction
- Medium temperature: max. 40 °C, temporarily higher
- Protection class IP 68 – fully submersible
Applications:
- Single WC lifting station for limited use in private households below backflow level, e.g. in basements or during renovation of old buildings
- Connection of one WC, washbasin, shower or bidet
Scope of Delivery:
- Plug-and-play assembly with 1.5 m connection cable and Schuko plug
- Accessories: anti-buoyancy device, inlet socket DN 40, pressure outlet 1 1/4“ female/male thread, Ø32 and Ø40 connection
- Small parts and fastening materials
| Application: | Disposal |
|---|---|
| Frequency: | 50 |
| Head up to [m]: | 7.0 |
| Installation location: | inside buildings |
| Max. flow rate [m³/h]: | 7.0 |
| Max. temperature [°C]: | 40 (kurzzeitig 90) |
| Nominal current [A]: | 2.3 |
| Power P1 [W]: | 500 |
| Power P2 [W]: | 370 |
| Pumped medium: | clear water, sewage containing faeces, waste water |
| Speed [U/min]: | 2950 |
| Voltage [V]: | 230 |
| C [µF]: | 14 |
