Aqua 5-40M/230V
Aqua 5-40M/230V
Product number:
18884
Aqua 5-40M/230V
Product number:
18884

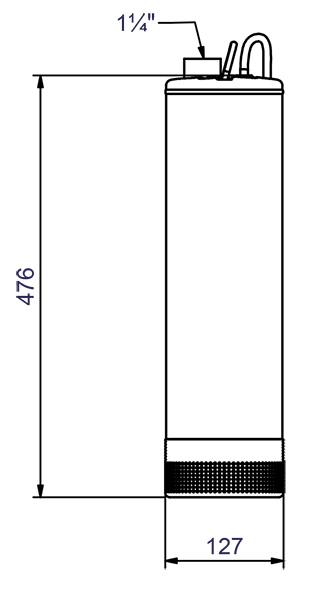

- Multi-stage 5" submersible pump with integrated, water-circulated motor
- Max. flow rate: 5,7 m³/h
- Max. head: 45,0 m
- Input power P1: 1.000 W
- Output power P2: 600 W
- Pressure outlet: 1 1/4" internal thread
Model
- Multistage submersible pump with integrated, water-jacketed motor
- Optimal efficiency – thanks to water-cooled motor
- Incl. 20 m power cable H07 RNF, 230 V – version with plug
- Maximum immersion depth: 20 m
- Diffusers made of fiberglass-reinforced Noryl®
- Pump housing, impellers, suction port made of stainless steel 1.4301, shaft made of stainless steel 1.4021
- Optionally available with float switch (type MA)
Applicatioan
- for open and drilled wells - well diameter 5“ (127 mm)
- for general water supplies, pressure boost and irrigation
- rainwater utilization
- supply of clear water with low portion of aggressive and abrasive components
| Application: | Supply |
|---|---|
| Features: | ohne Schwimmerschalter |
| Frequency: | 50 |
| Head up to [m]: | 45.0 |
| Installation location: | outside buildings |
| Max. temperature [°C]: | 35 |
| Nominal current [A]: | 4.4, 5.7 |
| Packing (WxHxL): | 200 x 160 x 550 |
| Power P1 [W]: | 1000 |
| Pumped medium: | clear water, rainwater |
| Speed [U/min]: | 2850 |
| Voltage [V]: | 230 |
| C [µF]: | 20 |
