Domestic water systems CPS 15 15/20 Ad Pro
Domestic water systems CPS 15 15/20 Ad Pro
Product number:
20247
Domestic water systems CPS 15 15/20 Ad Pro
Product number:
20247
- Self-priming, multi-stage centrifugal pump with Ad Pro automatic switch

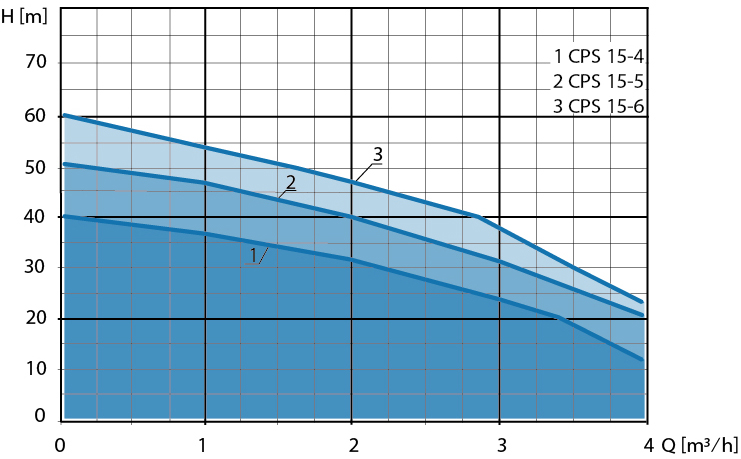

- Max. flow rate: 4,0 m³/h
- Max. head: 40 m
- Input power P1: 900 W
- Output power P2: 700 W
- Pressure outlet: RP 1
Model
- self-priming, maintenance-free, multi-stage, horizontal centrifugal pump
- suction and discharge cases made of alpha-brass resistant to dezincification
- guide wheels made of special Noryl®
- O-rings made of NBR
- AdPro: Suction socket 1”, pressure socket 1” external thread
- AdPro: Adjustable switching-on pressure ranging from 1.5 - 3.5 bar. When one of the consumers gets opened, the pump is automatically switched on. When all consumers are closed, the pump automatically switches off. Additional dry-running protection
Application
- complete water supply package for: Rainwater utilization plants, irrigation, pressure boost, clear water without aggressive and abrasive matters.
| Application: | Supply |
|---|---|
| Features: | with electronic pressure switch |
| Frequency: | 50 |
| Installation location: | inside buildings |
| Max. flow rate [m³/h]: | 4.0, 40.0 |
| Max. temperature [°C]: | 40 |
| Packing (WxHxL): | 250 x 470 x 450 |
| Power P1 [W]: | 900 |
| Pumped medium: | clear water, rainwater |
| Speed [U/min]: | 2850 |
| Voltage [V]: | 230 |
| C [µF]: | 16 |
