Domestic water systems Gardenpress 1000
Domestic water systems Gardenpress 1000
Product number:
18734
Domestic water systems Gardenpress 1000
Product number:
18734
- Self-priming, single-stage centrifugal pump with Kit 02 automatic switch

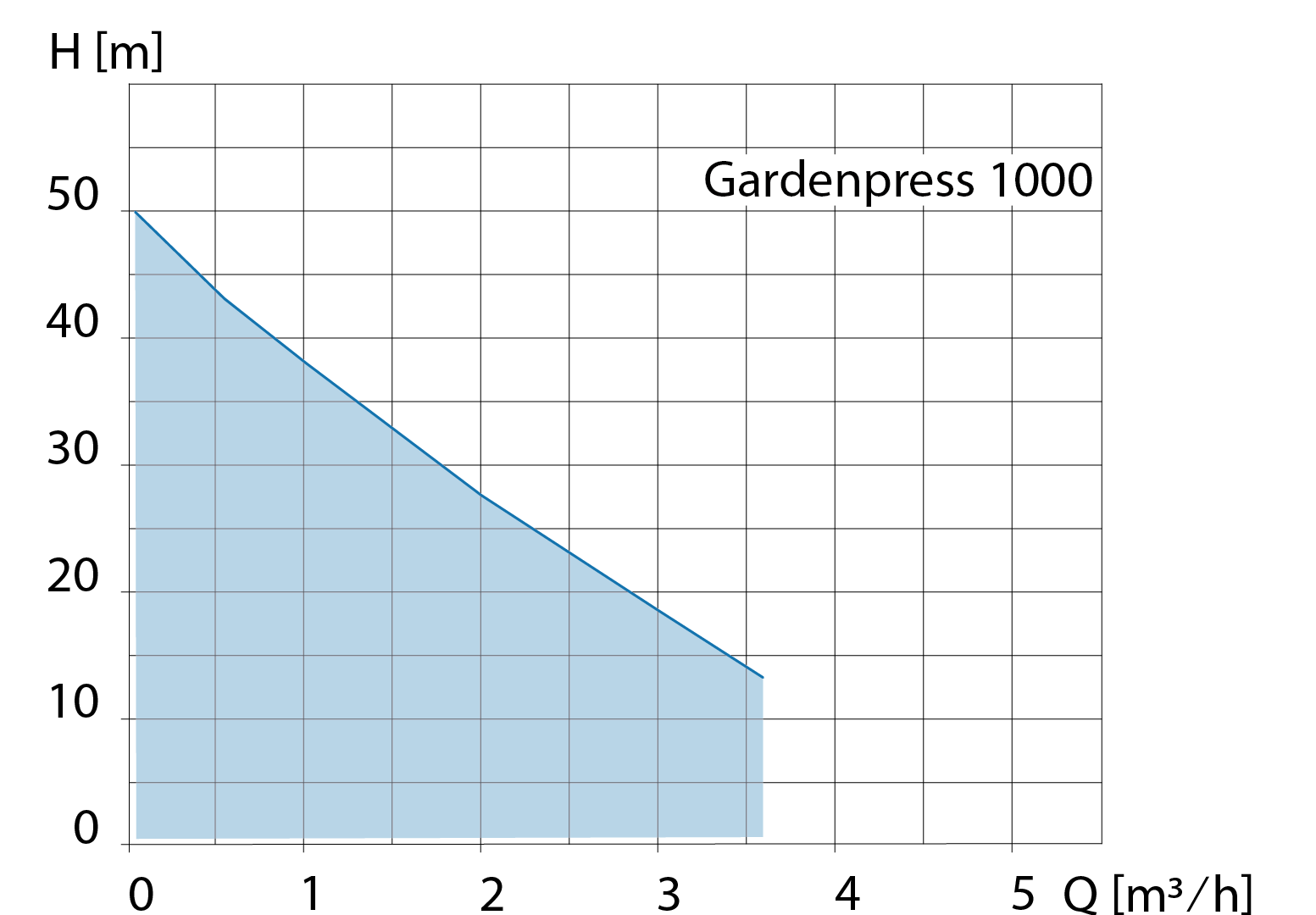

- Max. flow rate: 3,6 m³/h
- Max. head: 50,0 m
- Input power P1: 1.000 W
- Output power P2: 750 W

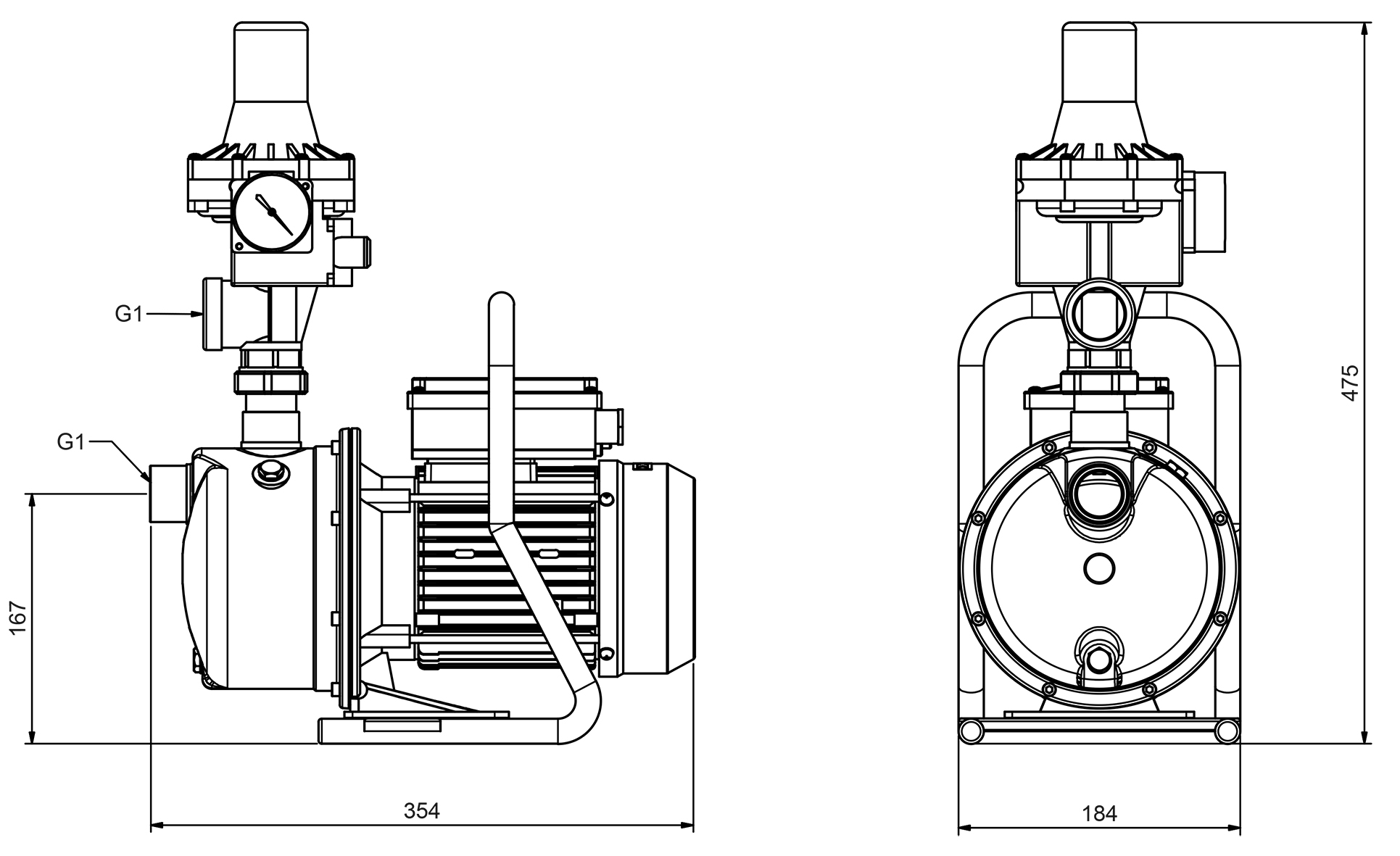

- Pressure outlet: 1" external thread (Kit 02)
Model
- Gardenpress 1000 - Centrifugal jet pump with Venturi nozzle
- self-priming up to 8 m
- smoothly running
- pressure connector 1“, internal thread, suction connector 1“, internal thread
- diffusor and injector from thermoplastic material approved for drinking water
- stainless steel filling and draining plugs
- KIT 02 When one of the consumers gets opened, the pump is automatically switched on. When all the consumers are closed, the pump is automatically switched off. Additional dry-running protection
Application
- domestic water supply
- water supplies from wells, springs and bodies of water
- garden watering and irrigation
- pressure boost
- for plants of high discharge head
- supply of clear water without aggressive and abrasive components
| Application: | Supply |
|---|---|
| Features: | with electronic pressure switch |
| Frequency: | 50 |
| Head up to [m]: | 50.0 |
| Installation location: | inside buildings |
| Max. flow rate [m³/h]: | 3.6 |
| Max. temperature [°C]: | 40 |
| Nominal current [A]: | 5.2 |
| Packing (WxHxL): | 250 x 470 x 450 |
| Power P1 [W]: | 1000 |
| Pumped medium: | clear water, rainwater |
| Speed [U/min]: | 2900 |
| Voltage [V]: | 230 |
| C [µF]: | 20 |
