FPS-K 1600 simplex and duplex
FPS-K 1600 simplex and duplex
Product number:
21572
FPS-K 1600 simplex and duplex
Product number:
21572

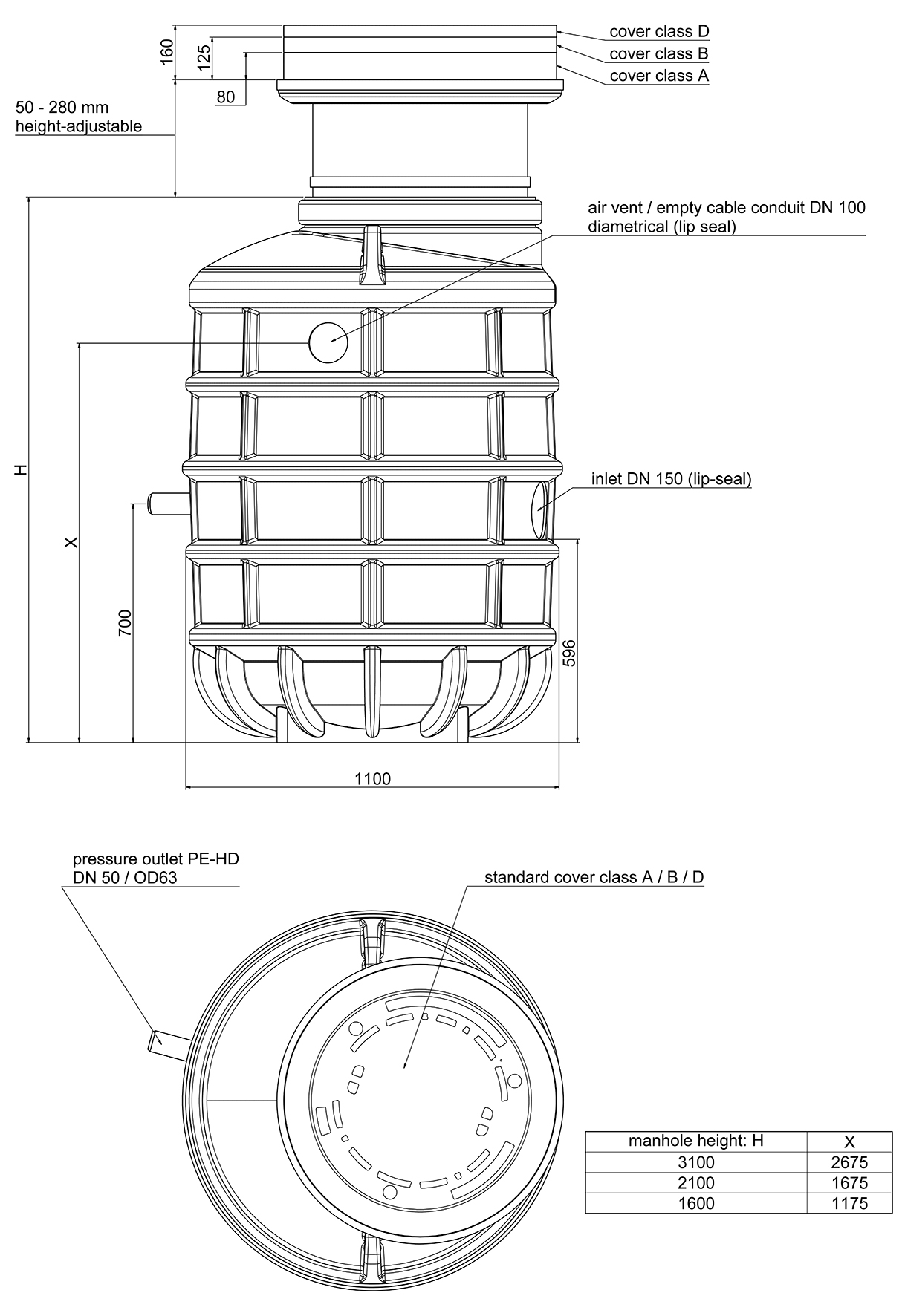

- Prefabricated shaft made of corrosion-resistant PE-LLD (shaft height 1.6m)
- with one pump of type ZPG 50.1 W

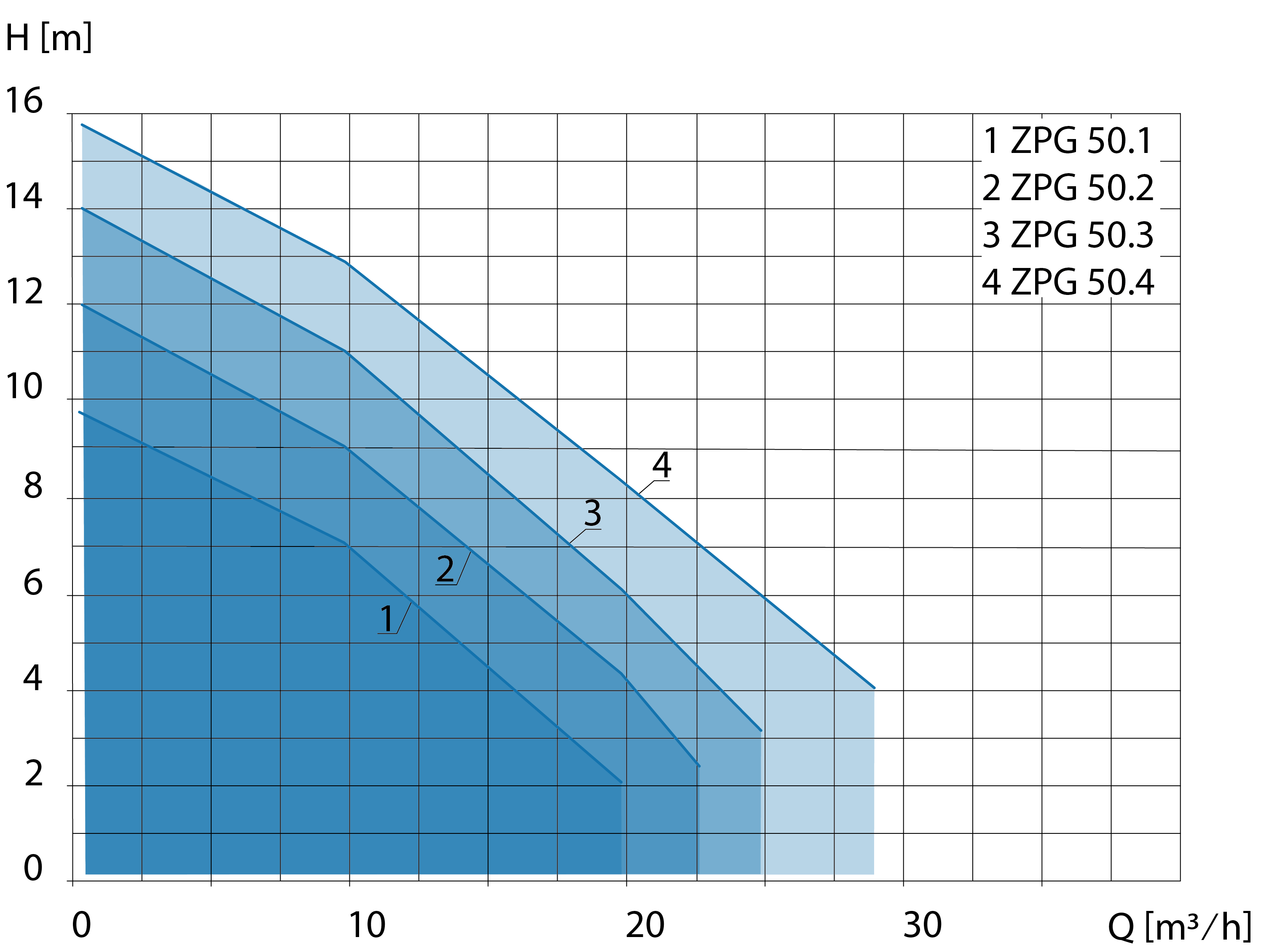

- Max. flow rate: 20,0 m³/h
- Max. head: 9,6 m
- Input power P1: 1.000 W
- Output power P2: 550 W
- Solids handling: 45 mm
Model
- packaged pumping station made of corrosion-resistant PE-LLD
- buoyancy-proof up to ground water level of max. 0,5 m from manhole's lower edge
- installation of one pump of the series ZFS 71, ZPG 50, ZPG 71
- stainless steel piping DN 32, pre-assembled with coupling system
- non-return valve, gate valve and flushing connection 1"
- pressure outlet PE-HD 63 x 5.8 – outside the manhole
- 1 x inlet DN 150, further inlets optional
- 2x connection DN 100 for cable gland and air vent
Application
- pumping of sewage from single-family houses
- as drainage pumping station
- for pressure drainage
- for installation outside buildings
- also drivable with manhole covers class B and D
Scope of delivery
- pumping station with pressure pipes and valves
- ZPG 50 series - waste water pump
- BEGU manhole cover class A-D optional (see accessories)
- control unit ZPS for pumping station
| Features: | mit pneumatischer Pumpensteuerung für Einzelpumpen |
|---|---|
| Frequency: | 50 |
| Head up to [m]: | 9.6 |
| Max. flow rate [m³/h]: | 20.0 |
| Max. temperature [°C]: | 40 |
| Nominal current [A]: | 5.0 |
| Power P1 [W]: | 1000 |
| Power P2 [W]: | 550 |
| Solids handling [mm]: | 45 |
| Speed [U/min]: | 2800 |
| Voltage [V]: | 230 |
