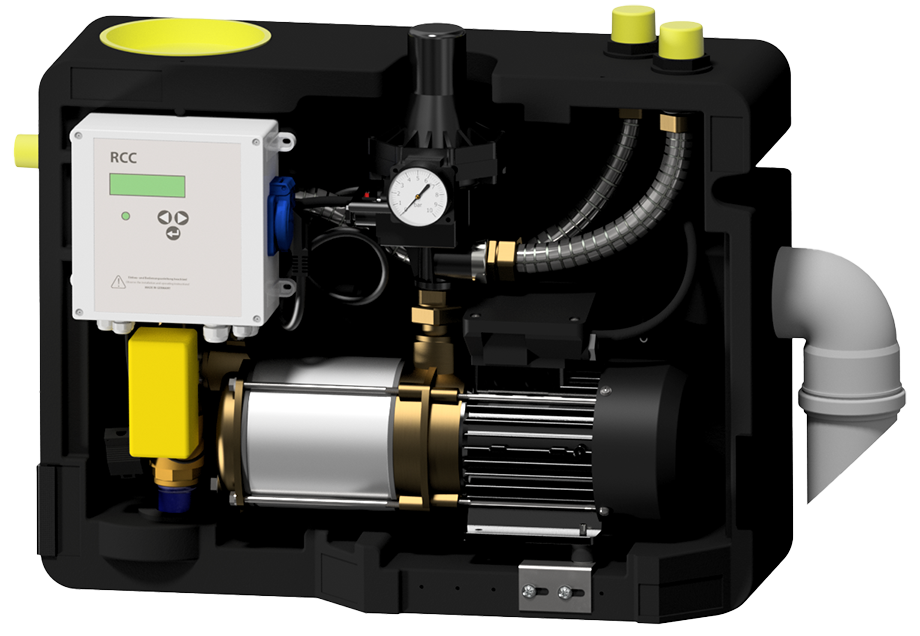

Raincenter PRO Basic 15
Raincenter PRO Basic 15
Product number:
19081
Raincenter PRO Basic 15
Product number:
19081
Model
Scope of delivery
- fully automatic electronic control of the entire installation
- integrated domestic water works CPS 15-4 with automatic control KIT 02
- house-internal drinking water replenishing on demand directly to the pump by-passing the tank
- case made of PE, cover of ABS, recyclable
- 3-way control valve made of brass
- pump case and impellers, made of stainless steel 1.4301
- suction and discharge case made of α-brass
- shaft made of stainless steel 1.4401
- guide wheels made of special (Noryl®)
- double end face mechanical seal consisting of carbon + ceramic
Application
- compact central unit for automatic control and water supplies from rainwater utilization plants
- detached house and two-family house
- clear water without aggressive and abrasive components
- filling level transducer with cable, 20 m long
- wall-mounting set including noise-protection dowels
| Application: | Supply |
|---|---|
| Frequency: | 50 |
| Installation location: | inside buildings |

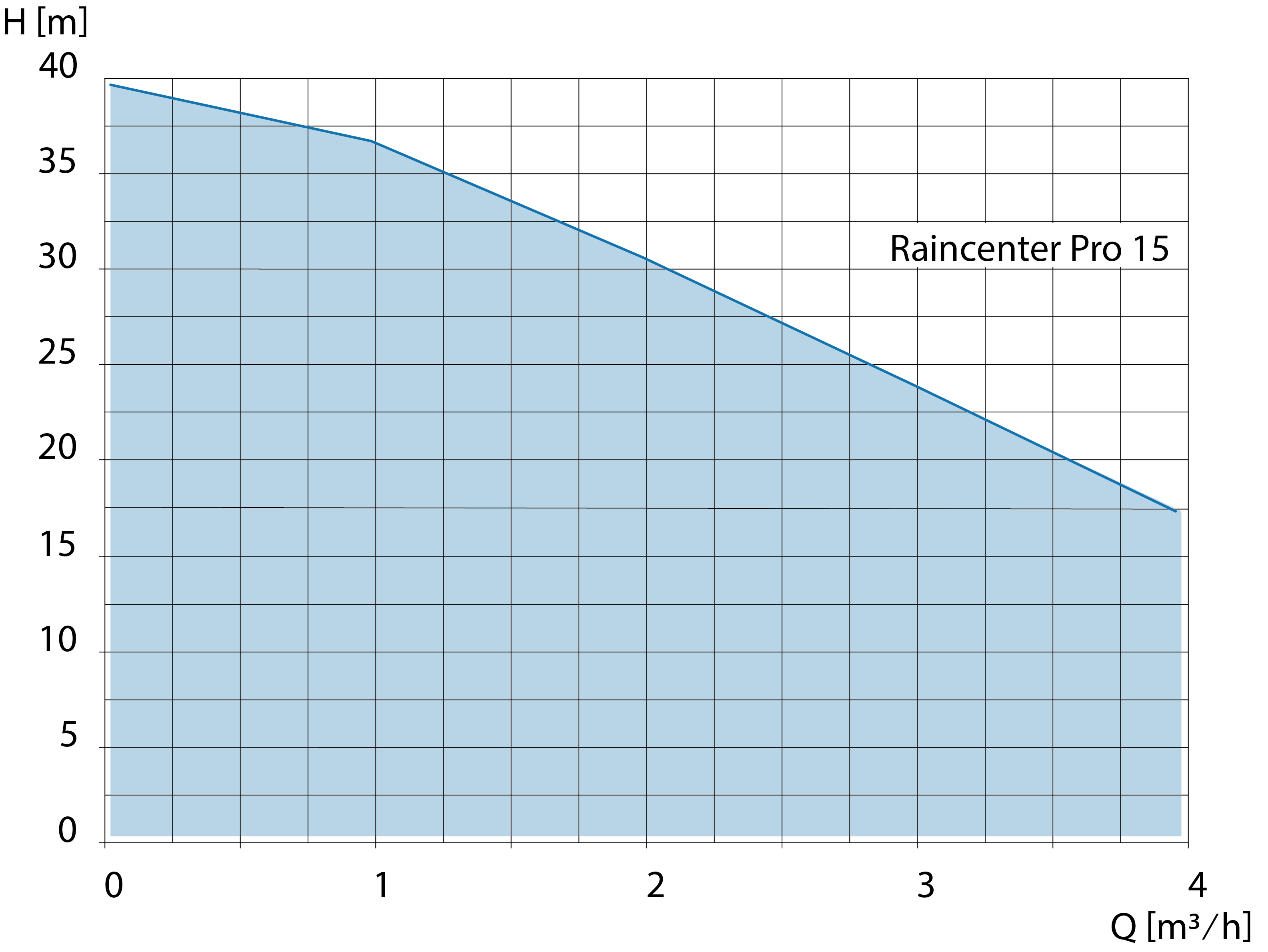

| Max. flow rate [m³/h]: | 4.0, 40.0 |
| Max. temperature [°C]: | 40 |
| Packing (WxHxL): | 510 x 330 x 670 |
| Power P1 [W]: | 900 |
| Pumped medium: | clear water, rainwater |
| Speed [U/min]: | 2850 |
| Voltage [V]: | 230 |
| C [µF]: | 16 |
