CPS 15-4 B 400V

Model
  • Self-priming, maintenance-free, multi-stage, horizontal centrifugal pump
  • High efficiency
  • Suction and pressure ports, internal thread (1" - 1¼")
  • CPS SM with on/off switch
  • CPS GG/SM: Suction and pressure housing made of gray cast iron
  • CPS B: Suction and pressure housing made of dezincification-resistant α-brass Impellers made of glass-fiber-reinforced Noryl®
Applications
  • Household water supply
  • Rainwater harvesting
  • Pressure boosting
  • Irrigation for clear water without aggressive and abrasive components
Scope of delivery
  • Pre-wired, incl. 1.5 meters of power cable H07 RNF with plug
Kennlinie Gartenpumpe CPS 15

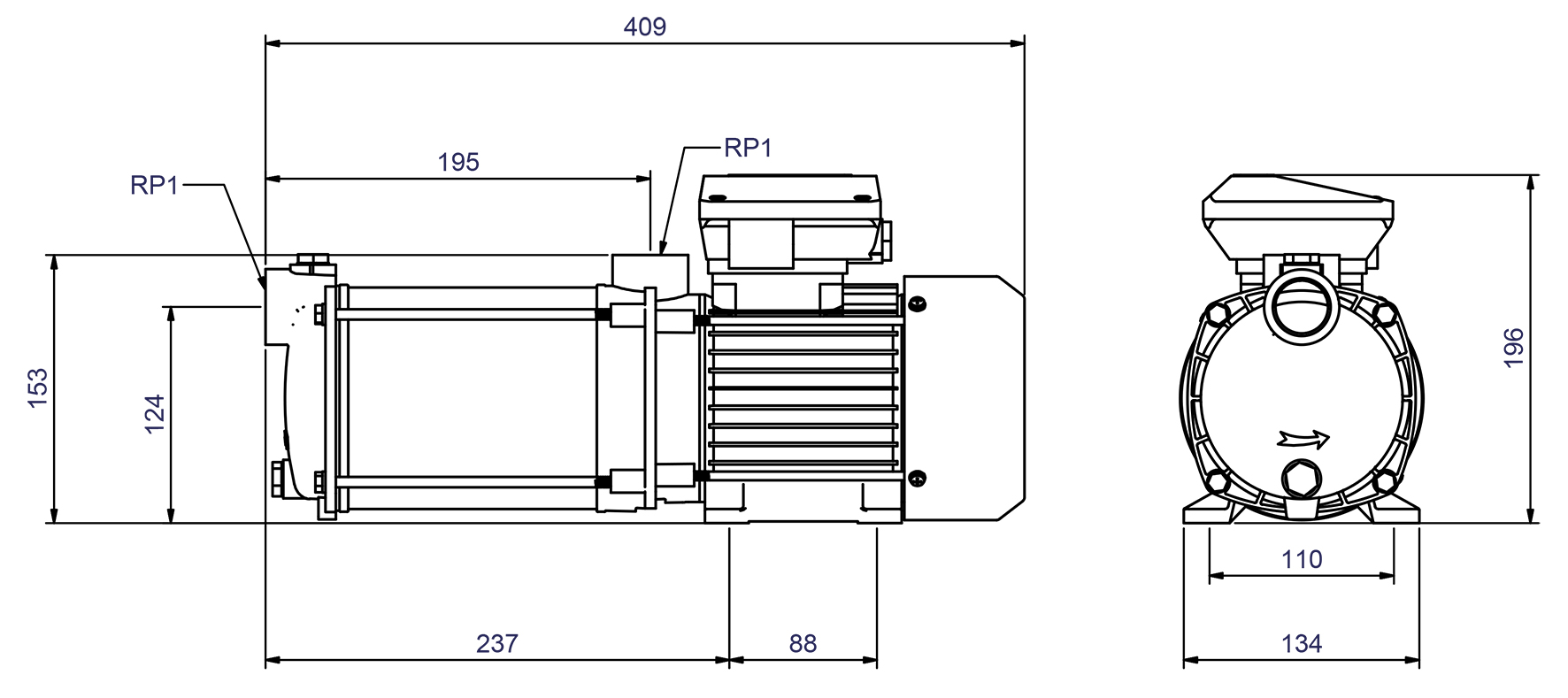

Abmessungen Gartenpumpe CPS 15-4b
Application: Supply
Frequency: 50
Installation location: inside buildings
Max. flow rate [m³/h]: 4.0, 40.0
Max. temperature [°C]: 40
Nominal current [A]: 2.8/1.6
Packing (WxHxL): 190 x 200 x 420
Power P1 [W]: 900
Pumped medium: clear water, rainwater
Speed [U/min]: 2850
Voltage [V]: 3~230/3~400
