E-ZWM 65
E-ZWM 65
Product number:
15237
E-ZWM 65
Product number:
15237
- Submersible waste water pump made of stainless steel with magnetic coupling

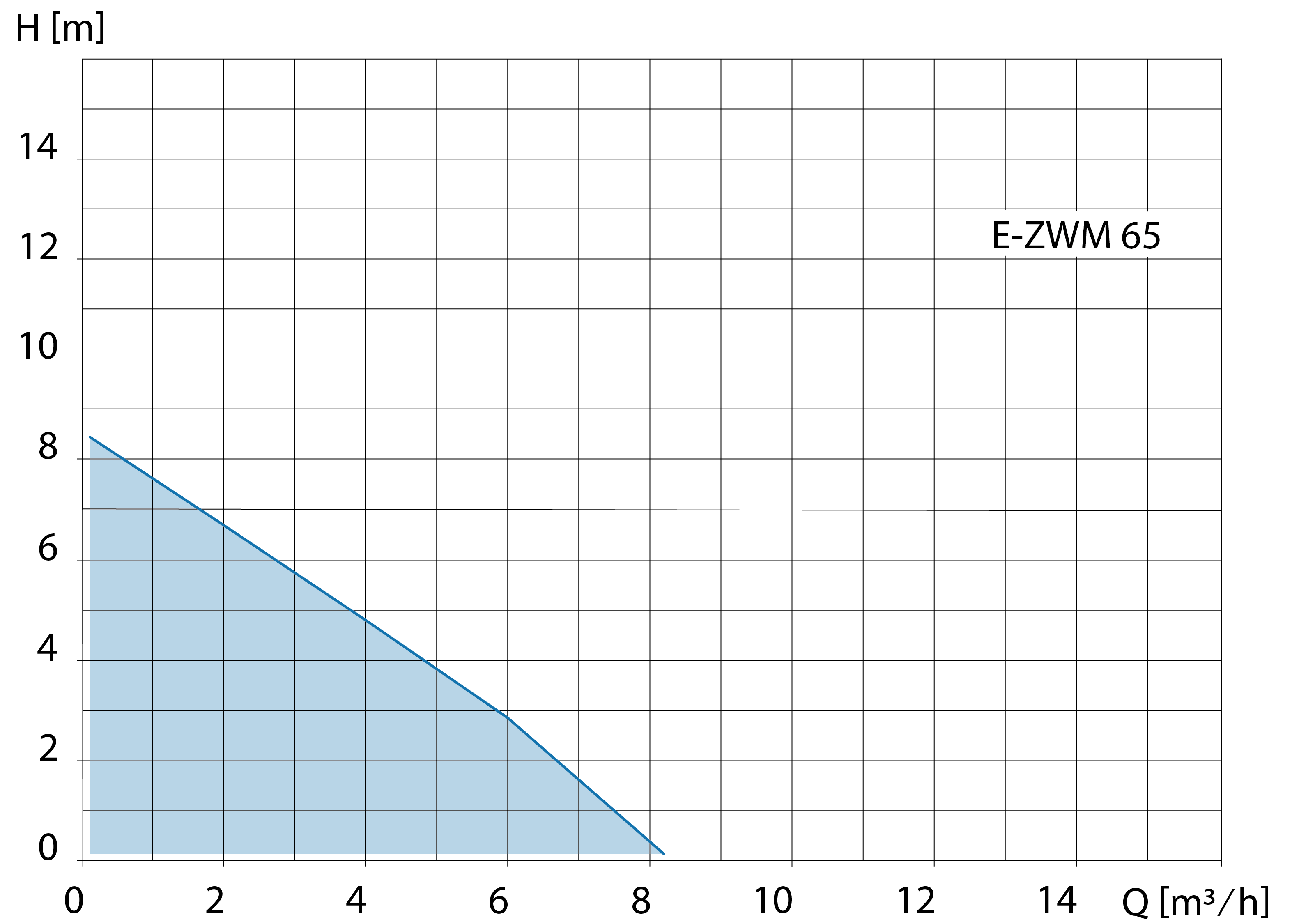

- Max. flow rate: 8,5 m³/h
- Max. head: 8,5 m
- Input power P1: 600 W
- Output power P2: 350 W
- Solids handling: 10 mm
- Pressure outlet: 1 1/4" internal thread
Model
- submersible waste water pump made of stainless steel
- motor winding with thermal winding protection
- sealless version with magnet coupling between motor and impeller
- pump housing, motor housing, shaft and suction strainer made of stainless steel, impeller made of polyamide
- jacket cooled mono-phase motor
- vertical pressure outlet 1 ¼” FPT
- protection grade IP 68 – fully submersible
Application
- pumping of clear water and waste water from pits, drainage manholes, cellars under heavy strain (endurance function)
- drainage of domestic waste water without faeces from showers, washing machines, washbasins under heavy strain (endurance function)
- circulation pump, fountain pump under heavy strain (endurance function)
Scope of delivery
- pump with 10 m power cable and plug
| Features: | ohne Schwimmerschalter |
|---|---|
| Frequency: | 50 |
| Head up to [m]: | 8.5 |
| Max. flow rate [m³/h]: | 8 |
| Max. temperature [°C]: | 40 (kurzzeitig 90) |
| Nominal current [A]: | 2.9 |
| Packing (WxHxL): | 187 x 502 x 187 |
| Power P1 [W]: | 600 |
| Power P2 [W]: | 350 |
| Speed [U/min]: | 2800 |
| Voltage [V]: | 230 |
| C [µF]: | 10 |
