ZPK 30
ZPK 30
Product number:
13011
ZPK 30
Product number:
13011
- Submersible waste water pump made of plastic

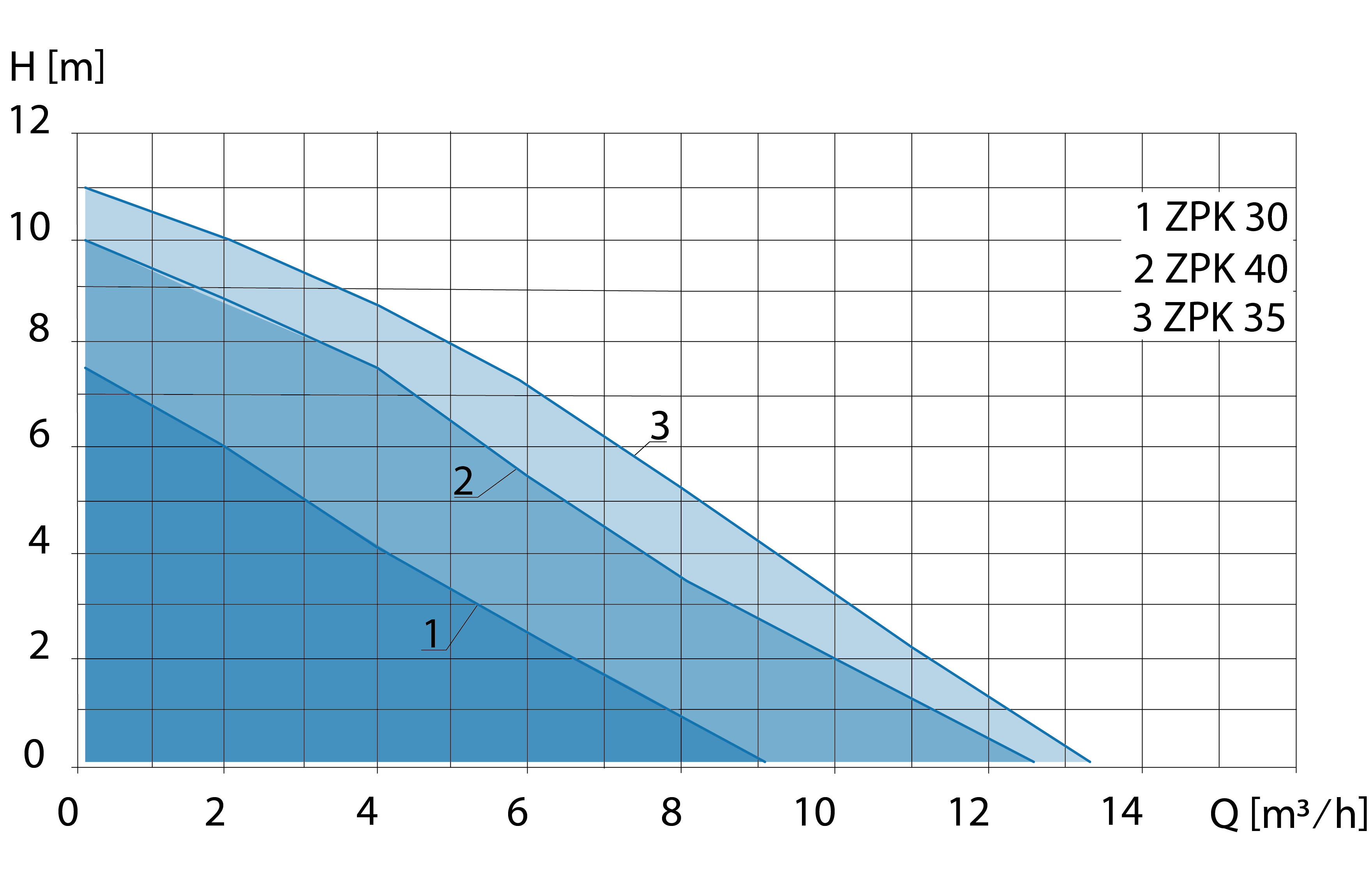

- Max. flow rate: 7,0 m³/h
- Max. head: 7,5 m
- Input power P1: 300 W
- Output power P2: 130 W
- Solds handling: 10 mm
- Pressure outlet: 1 1/4" external thread / hose connection DN 25
Model
- submersible waste water pump, made of corrosion- and shock-resistant polypropylene and high-grade stainless steel
- motor winding with thermal winding protection
- mechanical seal and additional shaft seal
- horizontal pressure outlet 1 ¼” MPT
- protection grade IP 68 – fully submersible
Application
- pumping of clear water and waste water from pits, drainage manholes, cellars etc.
- portable pump for emergency drainage
- drainage of domestic waste water without faeces from showers, washing machines, washbasins etc.
Scope of delivery
- pump with 10 m power cable and plug
- 90° hose connecting bend (ZPK 30: DN 25)
| Application: | Disposal |
|---|---|
| Features: | ohne Schwimmerschalter |
| Frequency: | 50 |
| Head up to [m]: | 7.0 |
| Installation location: | inside buildings, outside buildings, pump sump |
| Max. flow rate [m³/h]: | 7.5 |
| Max. temperature [°C]: | 40 (kurzzeitig 90) |
| Nominal current [A]: | 1.3 |
| Packing (WxHxL): | 186 x 349 x 186 |
| Power P1 [W]: | 300 |
| Power P2 [W]: | 130 |
| Pumped medium: | clear water, rainwater, waste water |
| Solids handling [mm]: | 5 |
| Speed [U/min]: | 2800 |
| Voltage [V]: | 230 |
| C [µF]: | 10 |
