Submersible pressure pump TDP
Submersible pressure pump TDP
Product number:
13646
Submersible pressure pump TDP
Product number:
13646
- Plastic submersible waste water pump

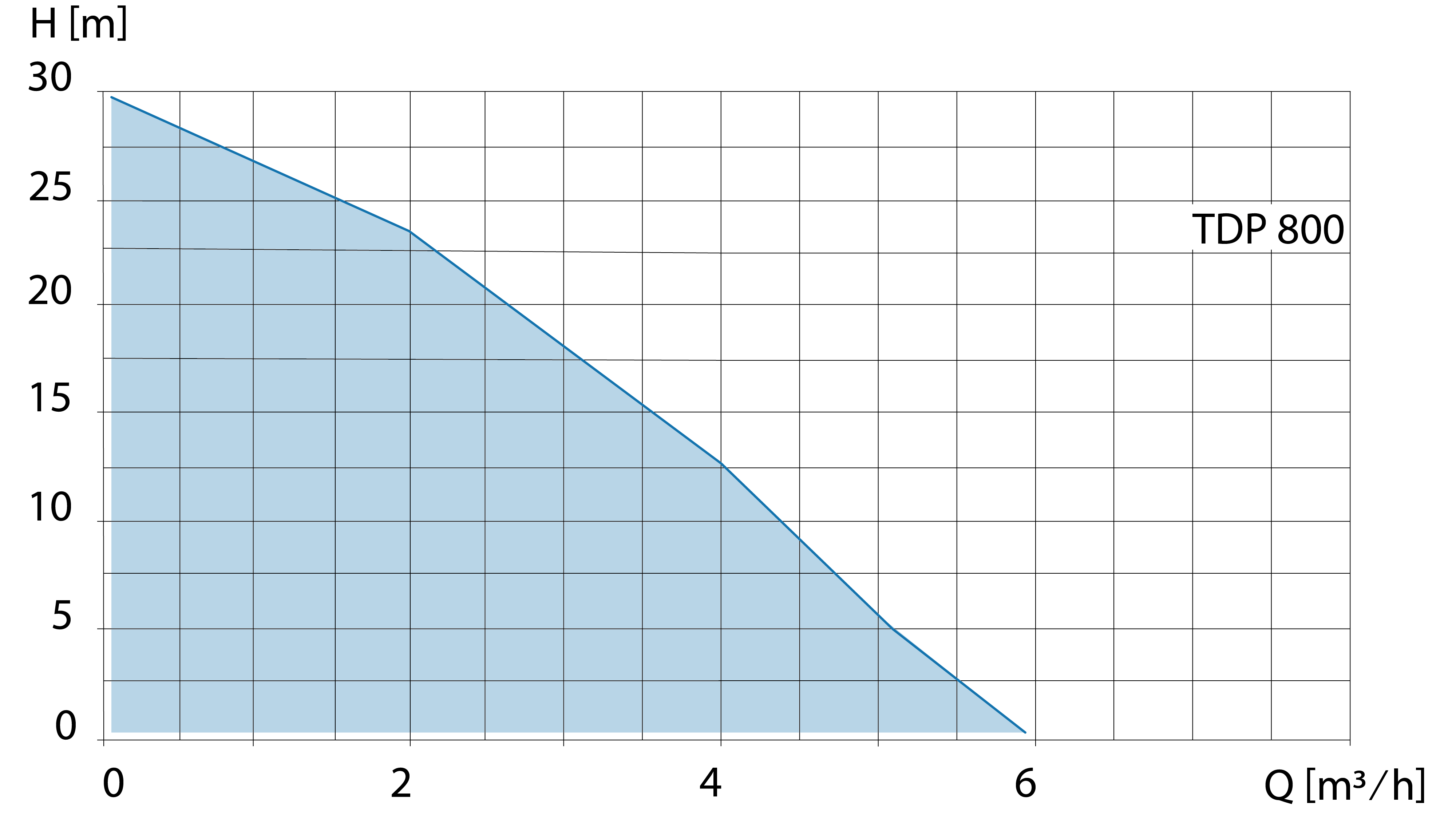

- Max. flow rate: 6,0 m³/h
- Max. head: 30,0 m
- Input power P1: 760 W
- Output power P2: 410 W
- Solids handling: 3 mm

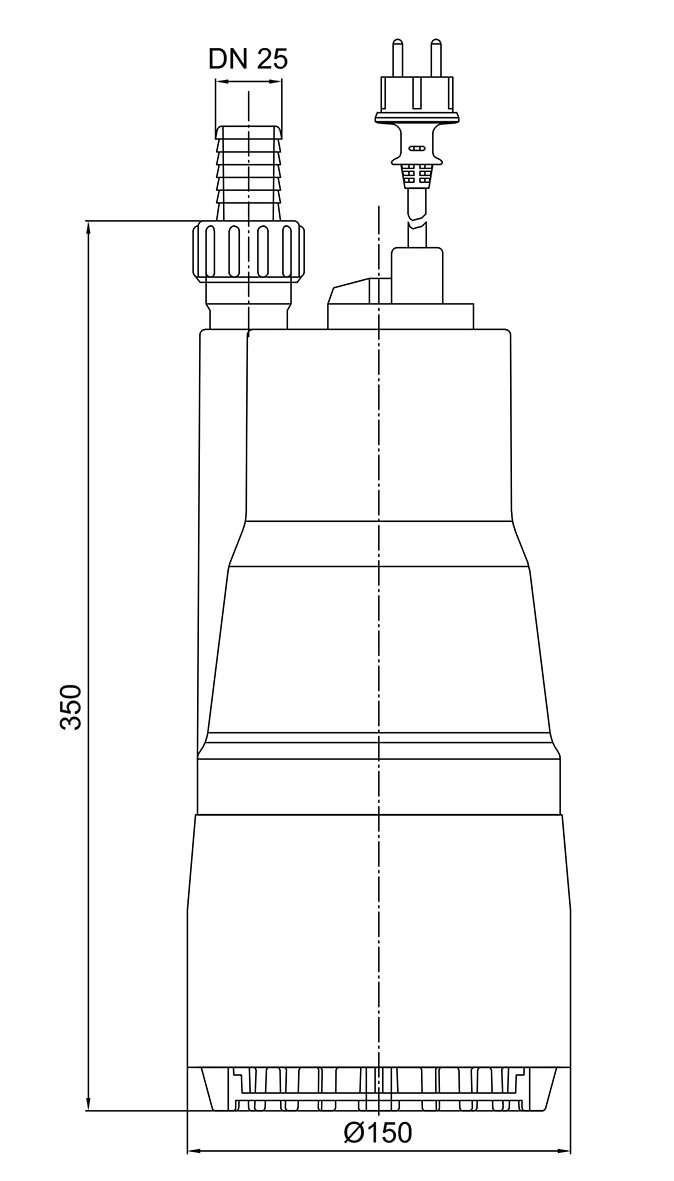

- Pressure outlet: 1" external thread / hose connection DN 25
Model
- multi-stage submersible pressure pump with large head, made of corrosion- and shock-resistant polypropylene and high-grade stainless steel
- motor winding with thermal winding protection
- mechanical seal and additional shaft seal
- jacket cooling
- vertical pressure outlet 1“
- protection grade IP 68 – fully submersible
Application
- pumping of slightly dirty waste water
- garden irrigation
Scope of delivery
- pump with 10 m power cable and plug
| Features: | ohne Schwimmerschalter |
|---|---|
| Frequency: | 50 |
| Head up to [m]: | 30.0 |
| Max. flow rate [m³/h]: | 8 |
| Max. temperature [°C]: | 40 |
| Nominal current [A]: | 3.4, 6.0 |
| Packing (WxHxL): | 186 x 349 x 186 |
| Power P1 [W]: | 760 |
| Power P2 [W]: | 410 |
| Solids handling [mm]: | 3 |
| Speed [U/min]: | 2800 |
| Voltage [V]: | 230 |
