ZPG 50.1 W
ZPG 50.1 W
Product number:
13049
ZPG 50.1 W
Product number:
13049
- Submersible waste water pump made of grey cast iron
- Max. flow rate: 20,0 m³/h
- Max. head: 9,6 m
- Input power P1: 1.000 W
- Output power P2: 550 W
- Solids handling: 45 mm
- Pressure outlet: DN 50
Model

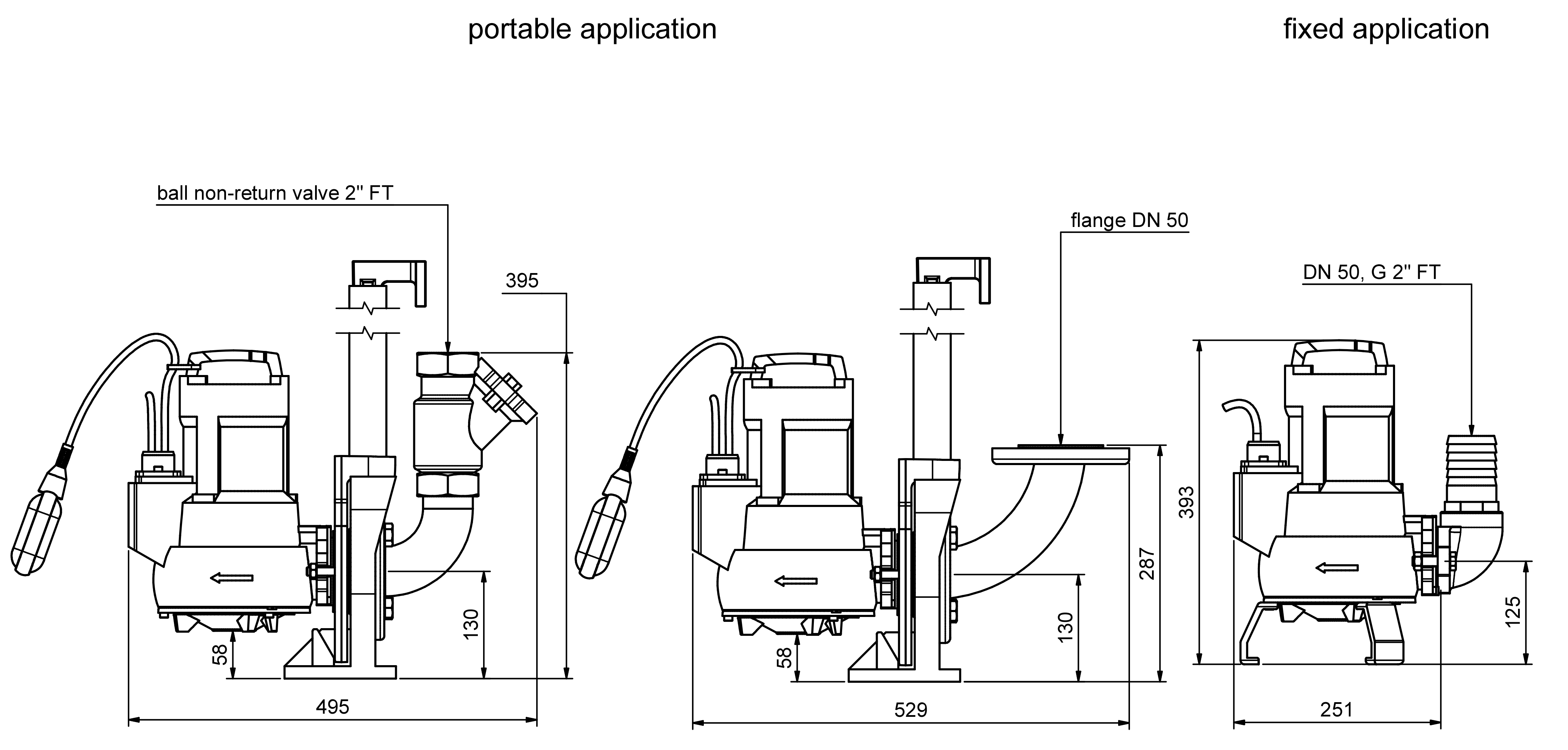

- submersible waste water pump made of cast iron for portable and stationary (coupling system) purposes
- pump housing, motor housing and impeller made of cast iron, shaft made of stainless steel
- motor winding with thermal winding protection (M-Version only)
- mechanical seal and additional shaft seal
- three-phase or mono-phase motor
- pressure outlet DN 50
- ZPG 50.X M (version A) with mounted float switch
- ZPG 50.X T retrofittable float switch available as an accessory
Application
- pumping of waste water with solid ingredients
- pumping of rainwater and surface water
- portable pump for emergency drainage and drainage of manholes
Scope of delivery
- version M (mono-phase 230 V): pump with 10 m power cable and plug, version WA with mounted float switch
- version T (three-phase 400 V): pump with 10 m power cable
- all pumps without stand feet and outlet bend
- optional coupling system (see accessories)
| Application: | Disposal |
|---|---|
| Features: | ohne Schwimmerschalter |
| Frequency: | 50 |
| Head up to [m]: | 9.6 |
| Installation location: | outside buildings, pump sump |
| Max. flow rate [m³/h]: | 20.0 |
| Max. temperature [°C]: | 40 |
| Nominal current [A]: | 5.0 |
| Packing (WxHxL): | 255 x 450 x 290 |
| Power P1 [W]: | 1000 |
| Power P2 [W]: | 550 |
| Pumped medium: | clear water, rainwater, waste water |
| Solids handling [mm]: | 45 |
| Speed [U/min]: | 2800 |
| Voltage [V]: | 230 |
