Kompaktboy Duplex

Product number: 17560

Product number: 17560

Type

Request an offer

Model

polyethylene container with 150 litres capacity and up to 80 litres switching volume
vortex pumps with high efficiency and low operation noise
mechanical seal and shaft seal with intermediate oil chamber

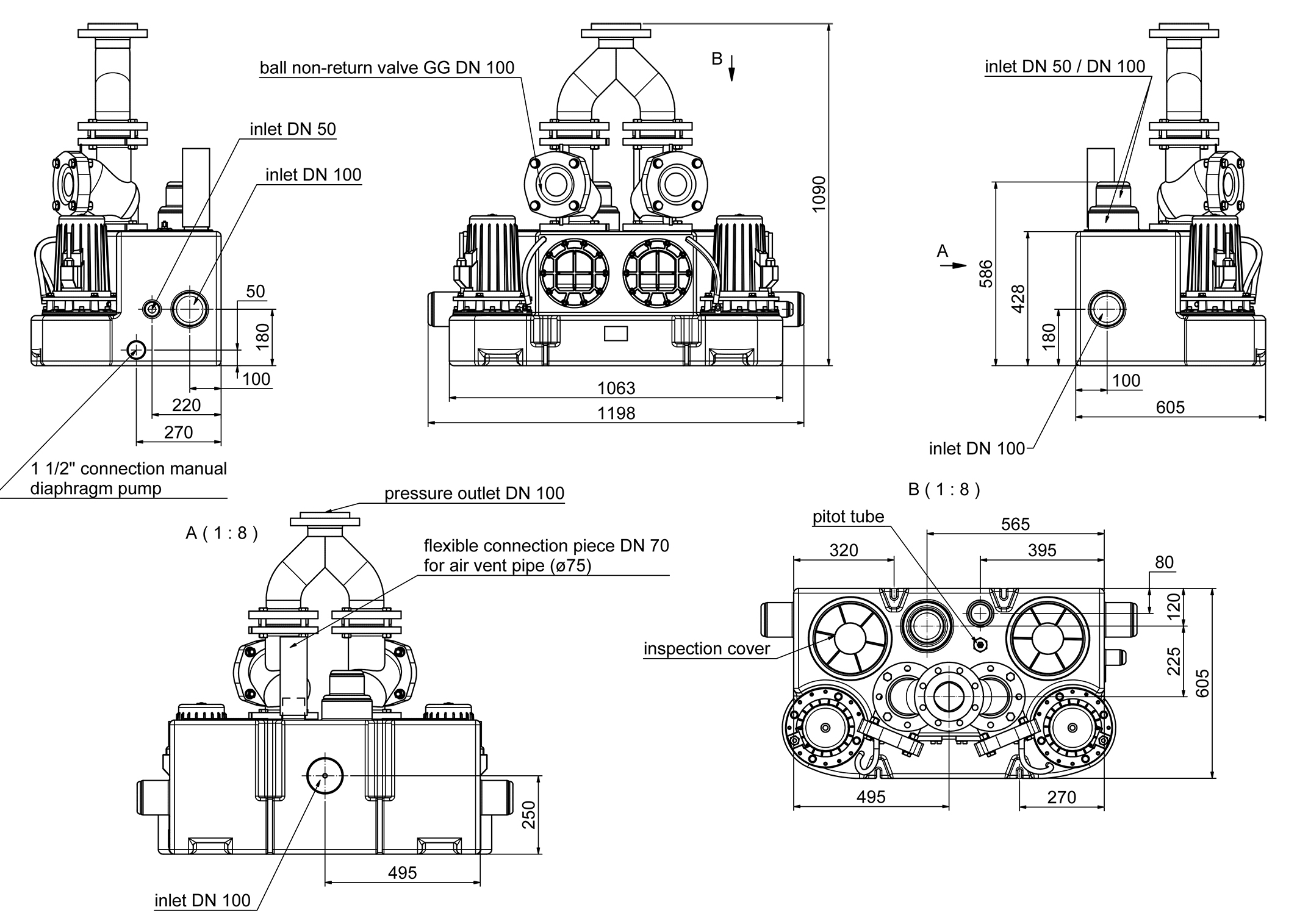

inlets: 2 x lateral DN 100, 1 x lateral DN 50, 1 x back DN 100 and 1 x top DN 50/100
additional connections 1 ½“ for manual diaphragm pump
air vent DN 70 (Ø 75mm)
operation temperature max. 55°C
operating mode S3 - 25%
protection grade IP 68 - fully submersible

Application

removal of domestic sewage out of single- or multi family houses
in public institutions, where the disposal of sewage must not be interrupted
above-ground installation in rooms protected from frost below the backwash level

Scope of delivery

pre-assembled lifting unit with 3,5 m connection cable to the motor and 5,0 m pneumatic tube to the control
with external cast iron non-return valves
Y-pipe DN 100/100/100
connection flange piece DN 100 for pressure pipe (DN 80 optional)
flexible connection with tension clamps for pressure pipe and ventilation pipe
incl. ZPS2: comfortable, pneumatic level control with microcontroller, LCD plain text display for filling level, maintenance, operating hours, fault message and alarm signal in switchbox for indoor installation

Features:	mit pneumatischer Pumpensteuerung für Doppelpumpanlagen
Frequency:	50
Head up to [m]:	15.0
Max. flow rate [m³/h]:	35.0
Max. temperature [°C]:	55
Nominal current [A]:	6.2
Packing (WxHxL):	780 x 1070 x 1180
Power P1 [W]:	3800
Power P2 [W]:	3000
Speed [U/min]:	2800
Voltage [V]:	400
