Kompaktboy Duplex
Kompaktboy Duplex
Product number:
17557
Kompaktboy Duplex
Product number:
17557
- Double sewage lifting unit with vortex pumps
- Max. flow rate: 41,0 m³/h
- Max. head: 8,1 m
- Input power P1: 1.700 W
- Output power P2: 1.100 W
- Solids handling: 50 mm
- Pressure outlet: DN 100
Model
- polyethylene container with 150 litres capacity and up to 80 litres switching volume
- vortex pumps with high efficiency and low operation noise
- mechanical seal and shaft seal with intermediate oil chamber

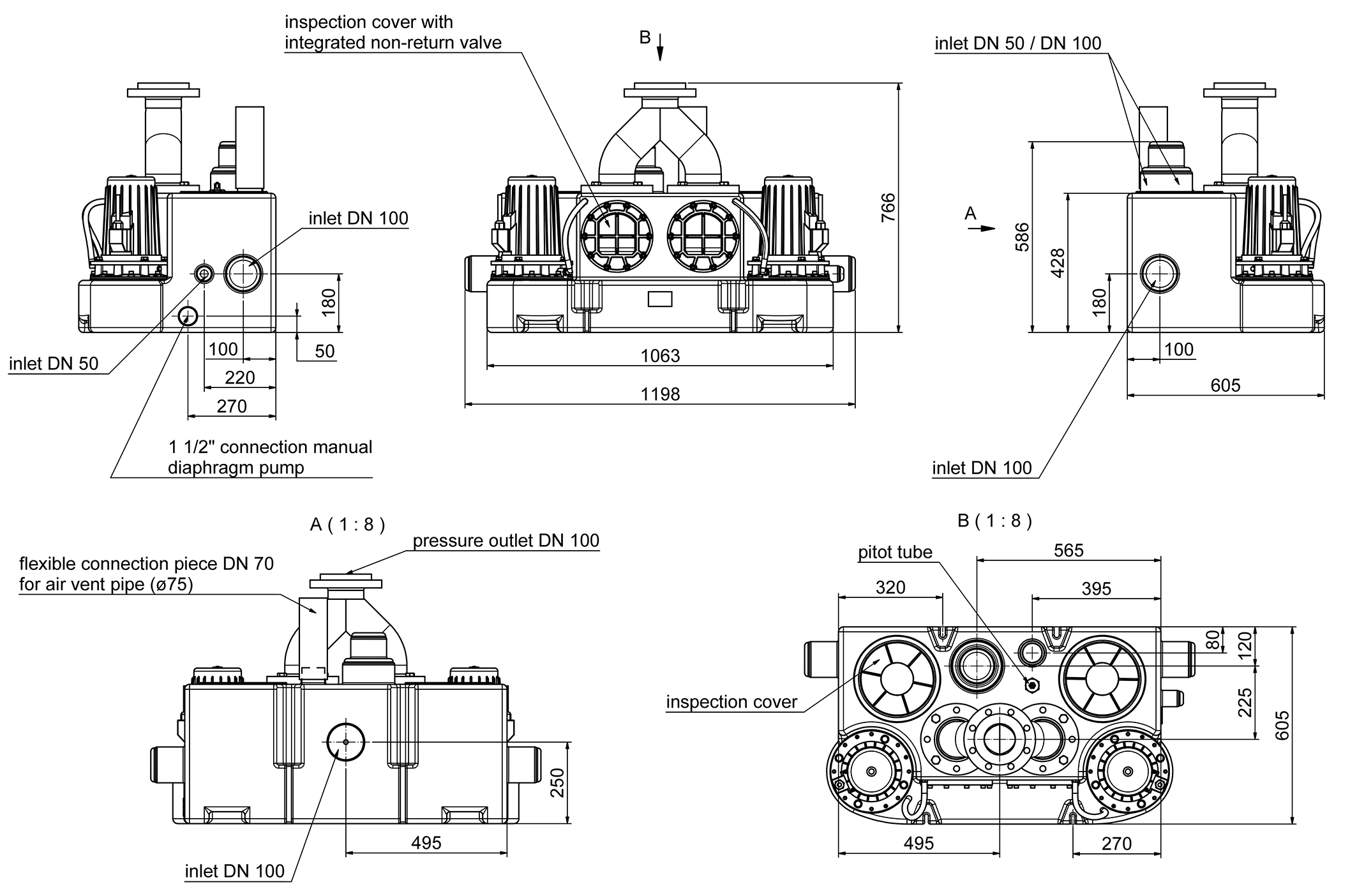

- inlets: 2 x lateral DN 100, 1 x lateral DN 50, 1 x back DN 100 and 1 x top DN 50/100
- additional connections 1 ½“ for manual diaphragm pump
- air vent DN 70 (Ø 75mm)
- operation temperature max. 55°C
- operating mode S3 - 25%
- protection grade IP 68 - fully submersible
Application
- removal of domestic sewage out of single- or multi family houses
- in public institutions, where the disposal of sewage must not be interrupted
- above-ground installation in rooms protected from frost below the backwash level
Scope of delivery
- pre-assembled lifting unit with 3,5 m connection cable to the motor and 3,5 m pneumatic tube to the control with integrated non-return valves DN 100
- Y-pipe DN 100/100/100
- connection flange piece DN 100 for pressure pipe (DN 80 optional)
- flexible connection with tension clamps for pressure pipe and ventilation pipe
- incl. ZPS2: comfortable, pneumatic level control with microcontroller, LCD plain text display for filling level, maintenance, operating hours, fault message and alarm signal in switchbox for indoor installation
| Application: | Disposal |
|---|---|
| Frequency: | 50 |
| Head up to [m]: | 8.1 |
| Installation location: | inside buildings |
| Max. flow rate [m³/h]: | 41.0 |
| Max. temperature [°C]: | 55 |
| Nominal current [A]: | 7.6 |
| Packing (WxHxL): | 780 x 1070 x 1180 |
| Power P1 [W]: | 1700 |
| Power P2 [W]: | 1100 |
| Pumped medium: | sewage containing faeces, waste water |
| Speed [U/min]: | 1400 |
| Voltage [V]: | 230 |
