WUZ 100 Simplex
WUZ 100 Simplex
Product number:
10545
WUZ 100 Simplex
Product number:
10545
- Single sewage lifting unit with channel wheel pump

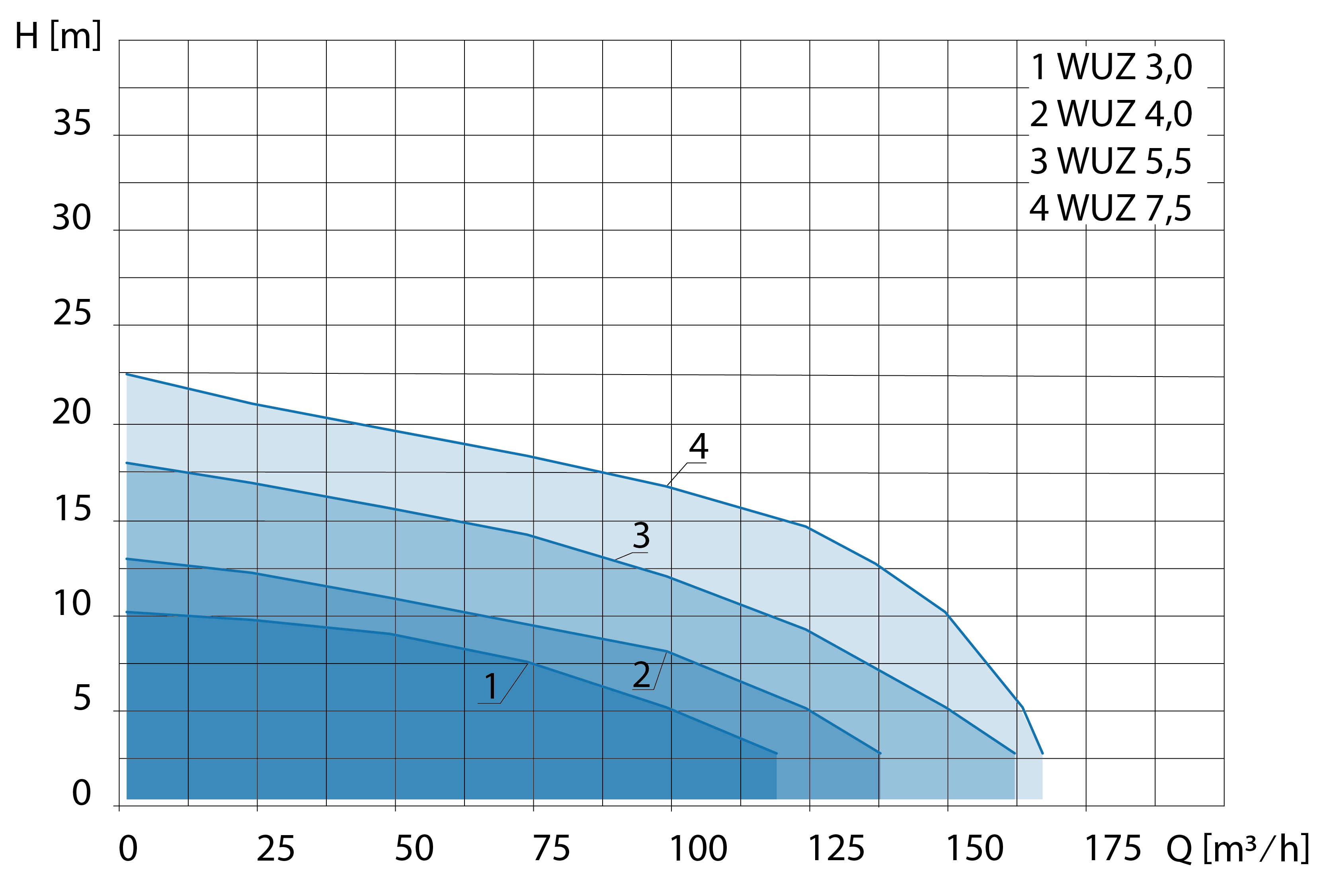

- Max. flow rate: 120,0 m³/h
- Max. head: 10,0 m
- Input power P1: 4.000 W
- Output power P2: 3.000 W
- Solids handling: 80 mm
- Pressure outlet: DN 100
Model

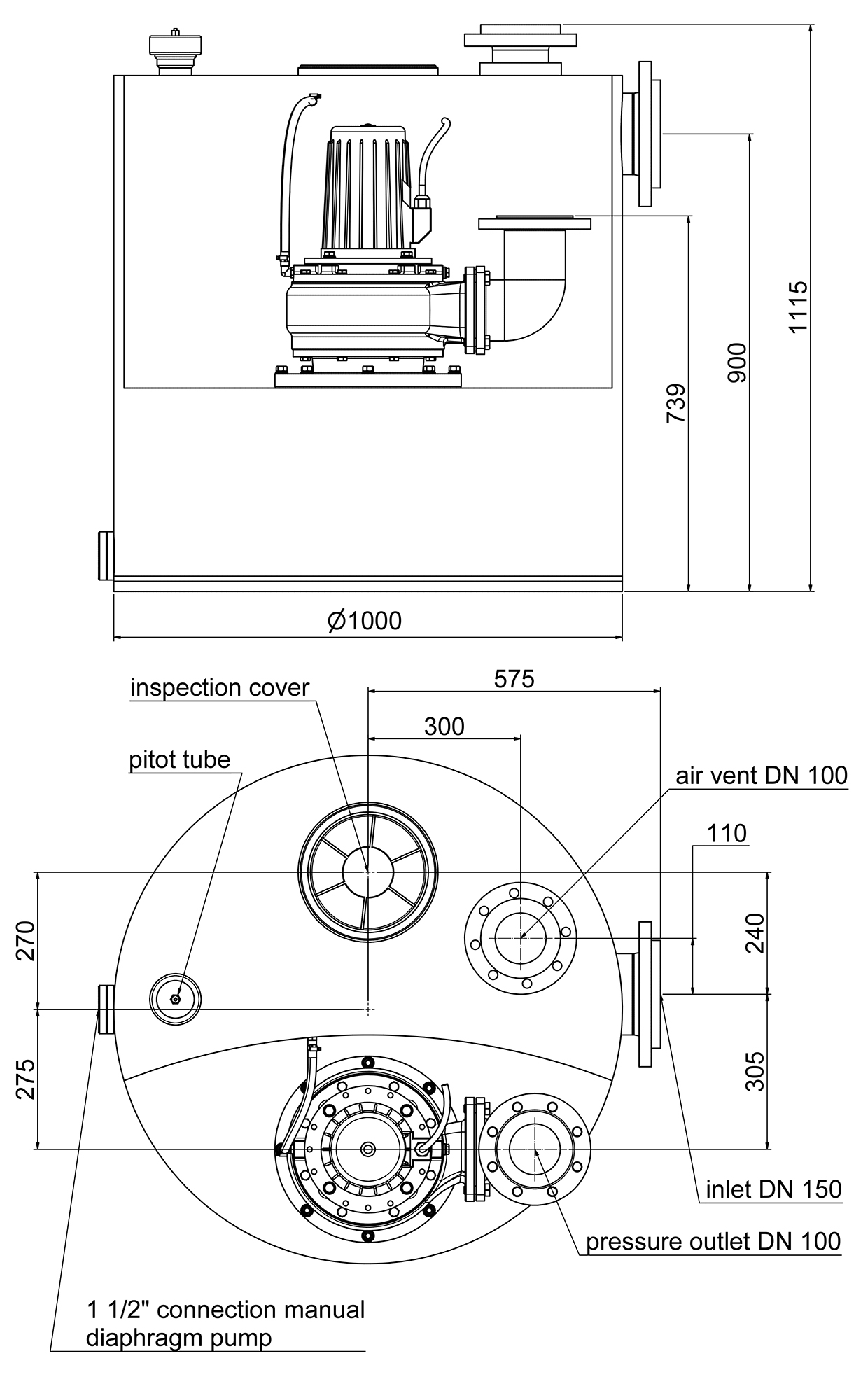

- polyethylene container with 480 litres capacity and up to 270 litres switching volume
- single-channel impeller pump with fibre cutting insert and large solids handling
- mechanical seal (up to 4kW) or chilled casting seal (> 5 kW) and shaft seal with intermediate oil chamber
- pump housing with flanged outlet bend DN 100
- lateral inlet with loose-type flange DN 150
- additional connection 1 ½“ for manual diaphragm pump
- air vent with loose-type flange DN 100 (Ø 110 mm)
- star-delta-start for 7,5 kW unit
- operation temperature max. 55°C
- operating mode S3 - 25%
- protection grade IP 57 - temporarly submersible
Application
- drainage of sewage from apartment buildings or industrial enterprises etc.
- above-ground installation in frost-free rooms below the backflow level
Scope of delivery
- pre-assembled lifting unit with 3,5 m connection cable to the motor and 3,5 m pneumatic tube to the control
- incl. ZPS1: comfortable, pneumatic level control with microcontroller, LCD plain text display for filling level, maintenance, operating hours, fault message and alarm signal in switchbox for indoor installation (7,5 kW ZPS1 control with star-delta-start)
- small compressor set with bubbler system
- Attention! Non-return valve, gate valve and further junction fittings optional (see accessories)arately
| Application: | Disposal |
|---|---|
| Features: | mit pneumatischer Pumpensteuerung für Einzelpumpen |
| Frequency: | 50 |
| Head up to [m]: | 10.0 |
| Installation location: | inside buildings |
| Max. flow rate [m³/h]: | 120.0 |
| Max. temperature [°C]: | 55 |
| Nominal current [A]: | 6.9 |
| Packing (WxHxL): | 1200 x 1265 x 1200 |
| Power P1 [W]: | 4000 |
| Power P2 [W]: | 3000 |
| Pumped medium: | sewage containing faeces, waste water |
| Solids handling [mm]: | 80 |
| Speed [U/min]: | 1400 |
| Voltage [V]: | 400 |
